Technical Data On All-Wheel Final Drive

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

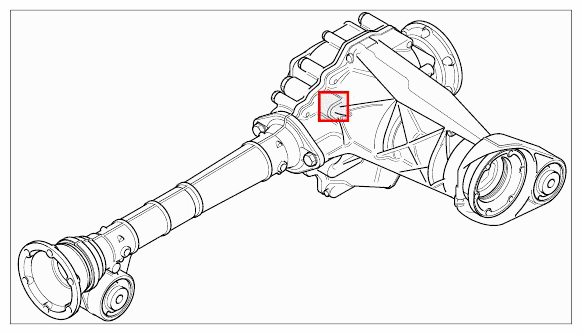

Fig 1: Overview Of Front-Axle Final Drive

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Type: V 48.20/V 48.22

Installed in: Cayenne

Model year: from 2004

Type: Bevel wheel gear

Transmission ratio for Tiptronic: i = 4.56

Transmission ratio for manual transmission: i = 4.10

Bearing rolling moment: 2.0 - 2.4

Filling capacity (new filling): → Filling capacity: approx. 1.0 l

Type: V 48.00/V 48.02

Installed in: Cayenne S

Model year: from 2003

Type: Bevel wheel gear

Transmission ratio for Tiptronic: i = 4.10

Transmission ratio for manual transmission: i = 3.70

Bearing rolling moment: 2.0 - 2.4

Filling capacity (new filling): → Filling capacity: approx. 1.0 l

Type: V 48.50/V 48.52

Installed in: Cayenne Turbo

Model year: from 2003

Type: Bevel wheel gear

Transmission ratio for Tiptronic: i = 3.70

Bearing rolling moment: 2.0 - 2.4

Filling capacity (new filling): → Filling capacity: approx. 1.0 l
