Removing Side Airbag

→ Switch off ignition and remove ignition key or remote control (hand-held transmitter).

→ A voltage supply (e.g. battery charger) must not be connected to the external power supply/jump-lead starting terminals.

→ Disconnect the battery and insulate the ground strap so that all contact with a ground carrier is avoided.

→ Wait 1 minute after disconnecting the battery.

→ Only detach connector on the triggering unit after the waiting time has elapsed.

→ Make sure that no foreign objects are located in front of the airbag unit during installation.

→ Replace damaged parts during removal.

→ Always position airbag units so that the blow-out opening is facing upwards, e.g. crest on driver's airbag.

→ Do not position anything on the airbag units.

→ If removed for an extended period, the airbag units must be stored in a safe place.

→ Airbag units must not come into contact with grease, oil, detergents, liquids, or similar substances.

→ Do not expose airbag units to temperatures above 90°.

→ Do not remove the short-circuit spring on the plug-in contacts.

→ Ignition and preparations may only be carried out by skilled staff, supervised by a second responsible person.

→ Before disposal, the airbag unit must be rendered harmless by electrical ignition performed in accordance with all precautionary measures, thereby preventing it from being used incorrectly.

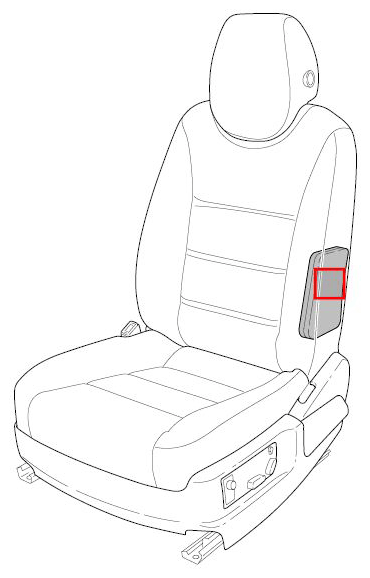

Fig 1: Overview Of Side Airbag

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

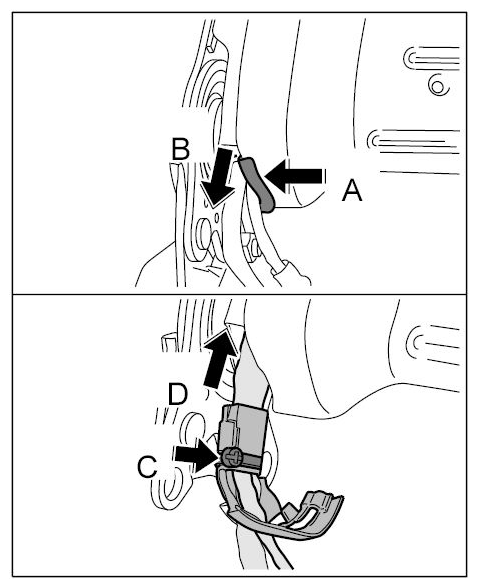

1. Push the inner edge of the protective cover for the wiring harness inwards -arrow A-  and pull out the protective cover in a downward direction -arrow B-  .
   Fig 2: Removing Protective Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Cut tie-wrap -arrow C-  and remove protective cover.
   Fig 3: Removing Protective Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Lift wiring harness for side airbag up and out -arrow D-  . Make sure that the two plugs are not damaged.
   Fig 4: Removing Protective Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

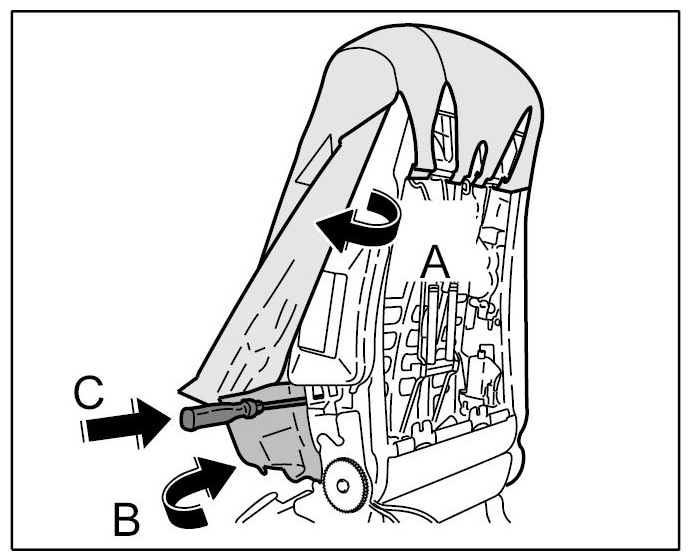

4. Remove backrest cover on airbag side and fold forwards -arrow A-  .
   Fig 5: Loosening Backrest Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Fold backrest cushion underneath the side airbag forwards -arrow B-  and use a screwdriver -arrow C-  to ensure that it does not fold back.
   Fig 6: Loosening Backrest Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

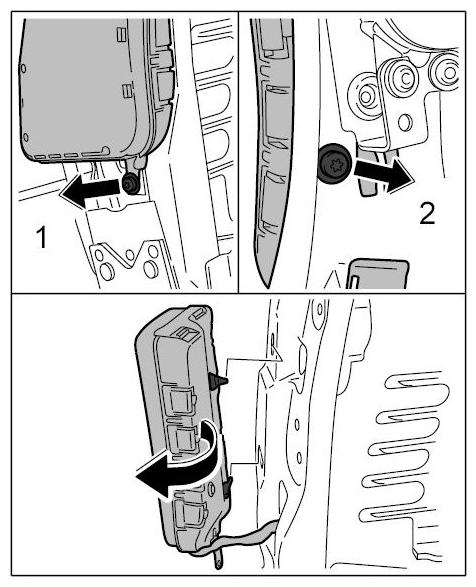

6. Unscrew outer -arrow 1-  and inner -arrow 2-  fastening screws.
   Fig 7: Loosening Side Airbag

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Swivel out and remove the side airbag.
