Installing Passenger's Airbag Unit

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

If a new component (e.g. sensor, airbag control unit, airbag unit) of the airbag system has to be installed, the new component will be supplied with a barcode sticker (tear-off label).

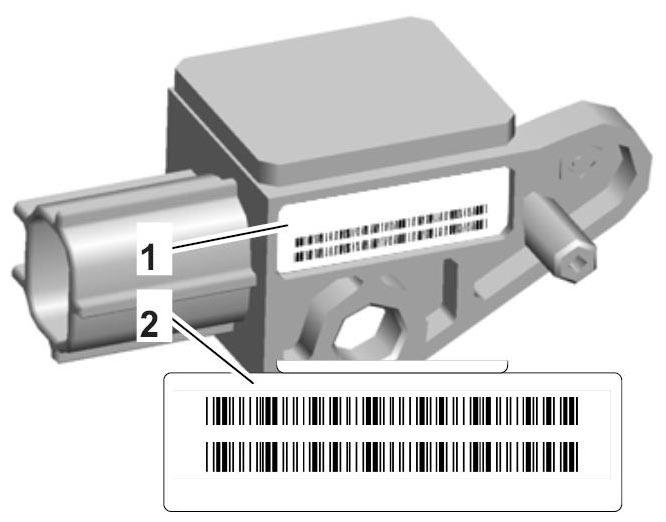

Fig 1: Identifying Airbag Sensor Tear-Off Label

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tear off the tear-off label -2- on the new component -1- and stick it in the Warranty and Maintenance booklet under the heading Proof of airbag system check/component replacement.

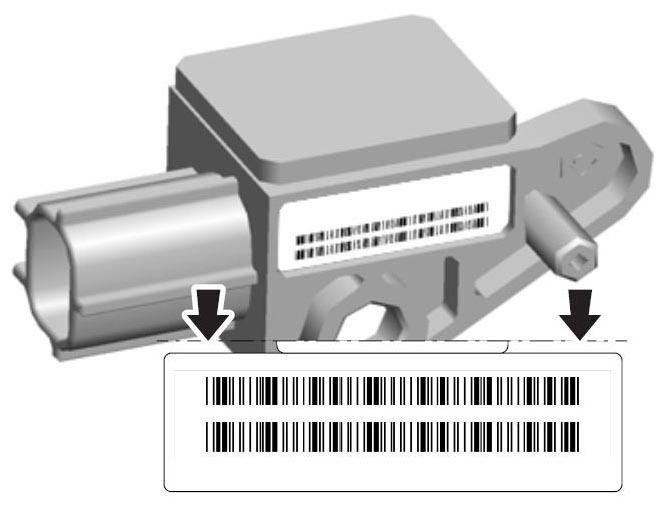

Fig 2: Identifying Tear-Off Label
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
The replacement date and current mileage must be documented and the booklet must be stamped with the Centre's stamp.

Position airbag unit on the dashboard, fit and tighten the fastening screws -arrows B- and -Arrows A- by hand.

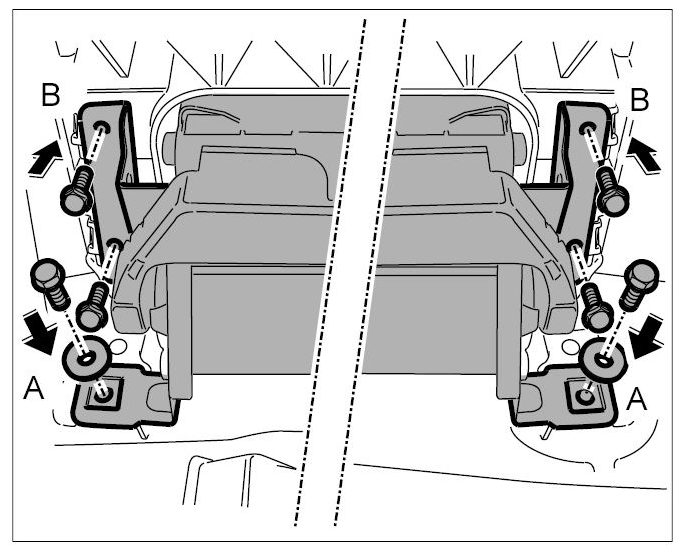

Fig 3: Installing Airbag Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Always replace the fastening screws and nuts after customer service and reworking. The micro-self-locking screws must not be treated, greased or loosened and then screwed on again.
First tighten the fastening screws -arrows B- on the dashboard, then the fastening screws -Arrows A- on the assembly tube. → Tightening torque: 10 Nm (7.5 ft lbs.) → Tightening torque: 10 Nm (7.5 ft lbs.)

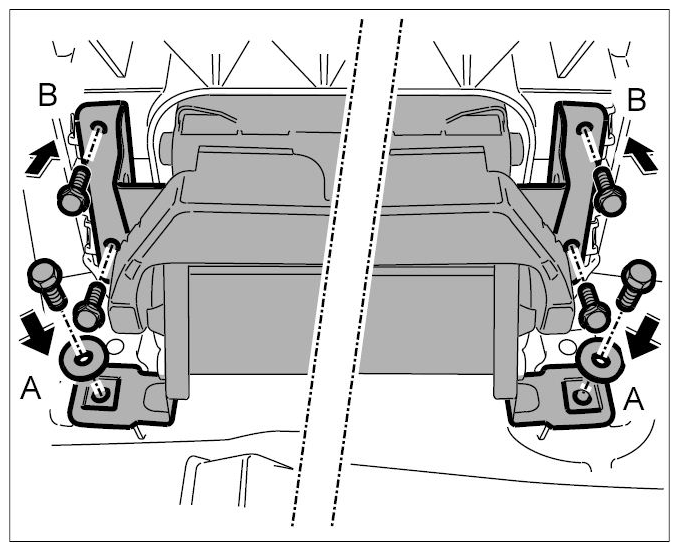

Fig 4: Identifying Installing Airbag Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert connector -arrow A- until the lock -arrow B- engages securely.

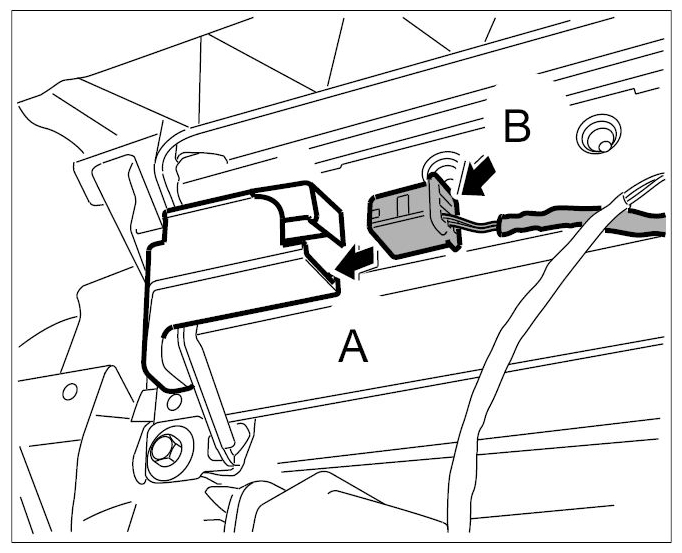

Fig 5: Inserting Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
