Removing Support Plate For Rear Adjustment Fitting

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew fastening screw -1-  and remove support plate.

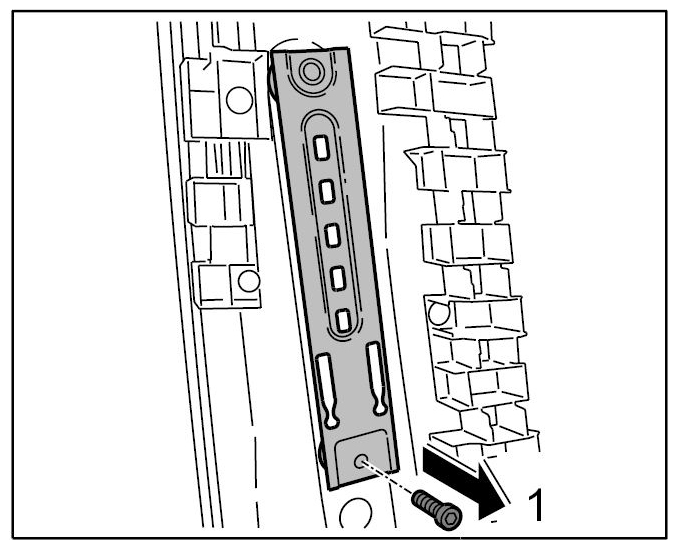

    Fig 1: Removing Support Plate
    G09412834Courtesy of PORSCHE CARS NORTH AMERICA, INC.
