Removing Rear Adjustment Fitting

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

After any accident, the seat belt system must be checked systematically for signs of damage. If damage is found, the entire seat belt system must be replaced.

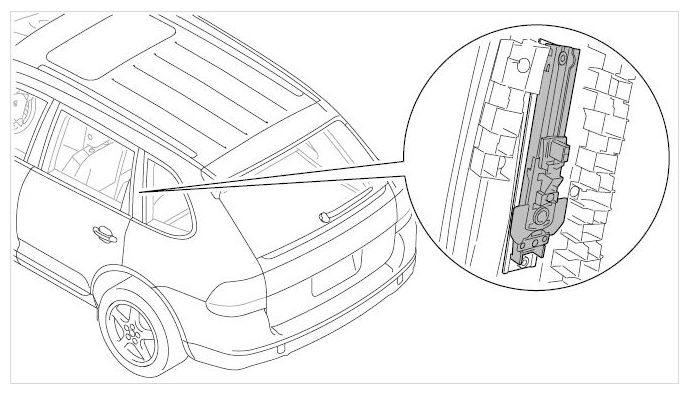

Fig 1: Identifying Rear Adjustment Fitting

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove C-pillar trim. → Removing C-pillar trim panel
Position adjustment fitting so that the upper fastening screw is accessible.

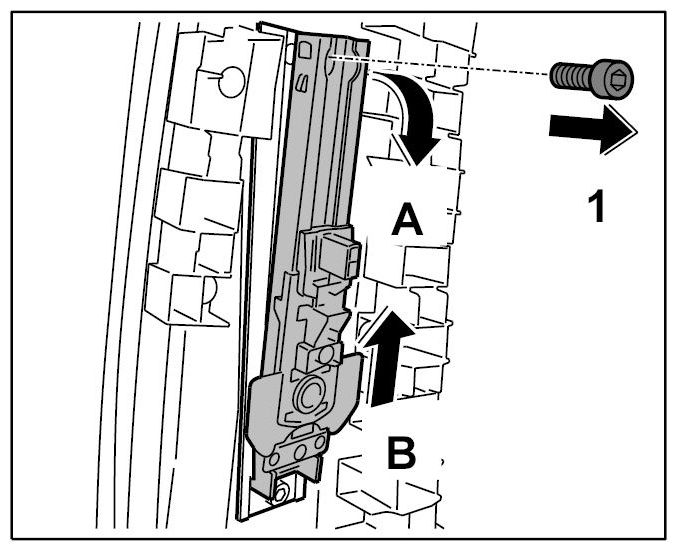

Fig 2: Positioning Adjustment Fitting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screw -1- .

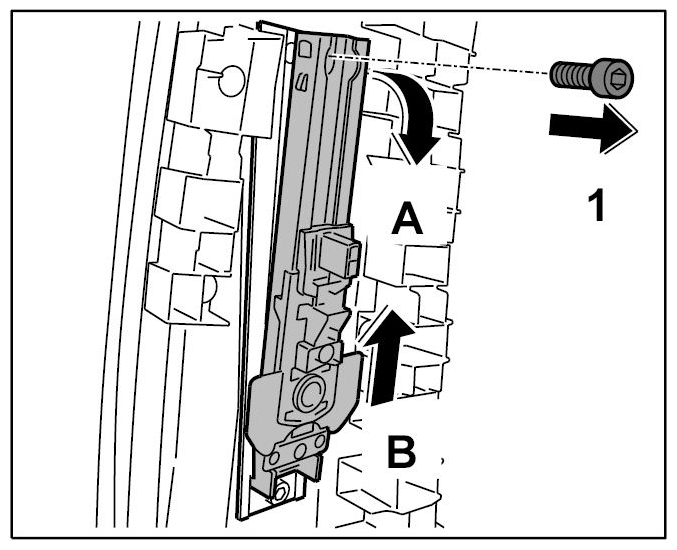

Fig 3: Removing Adjustment Fitting Mounting Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold adjustment fitting inwards -arrow A- and remove upwards -arrow B- .

Fig 4: Removing Adjustment Fitting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
