Installing Rear Adjustment Fitting

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Preloaded or pressurised components

Risk of squashing or bruising

→ Do not reach into the danger area.

→ Relieve the tension on components before starting work.

→ Secure components to prevent them from loosening suddenly.

Information

For safety reasons, the fastening screw -1- for the adjustment fitting must be replaced after removal.

Fig 1: Installing Adjustment Fitting Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

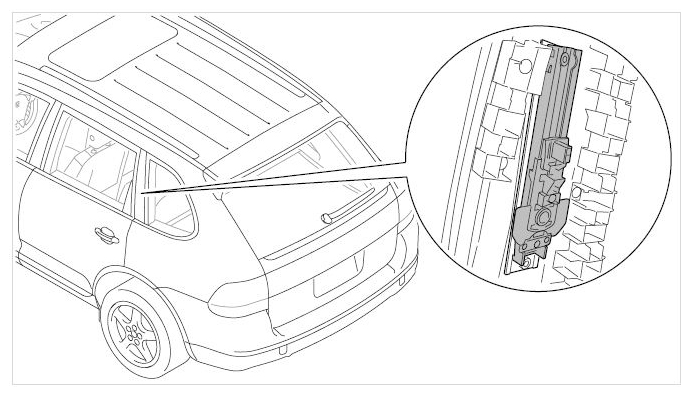

Fig 2: Identifying Adjustment Fitting

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

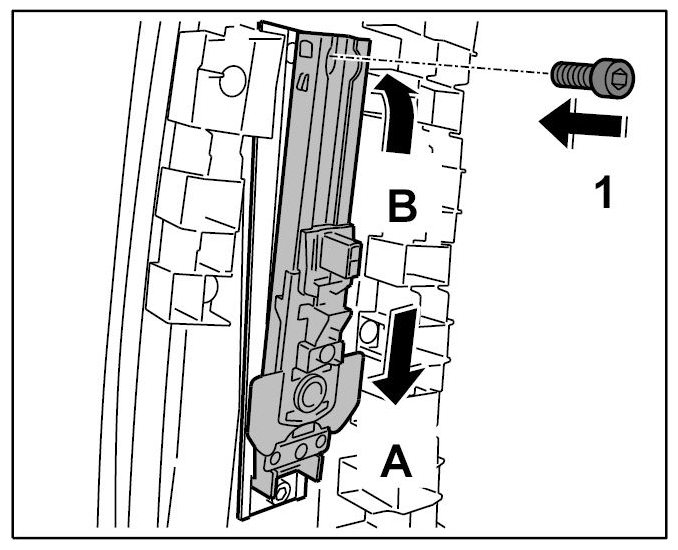

Engage the adjustment fitting on the support plate at the bottom -arrow A- and fold inwards at the top -arrow B- .

Fig 3: Installing Adjustment Fitting On Support Plate
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw down support plate and adjustment fitting with the fastening screws -1- top and bottom. → Tightening torque: 4.5 Nm (3.5 ft lbs.)

Fig 4: Identifying Adjustment Fitting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install C-pillar trim panel. → Installing C-pillar trim panel and release for belt height adjustment
