Removing Electric Adjustment Fitting

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

After any accident, the seat belt system must be checked systematically for signs of damage. If damage is found, the entire seat belt system must be replaced.

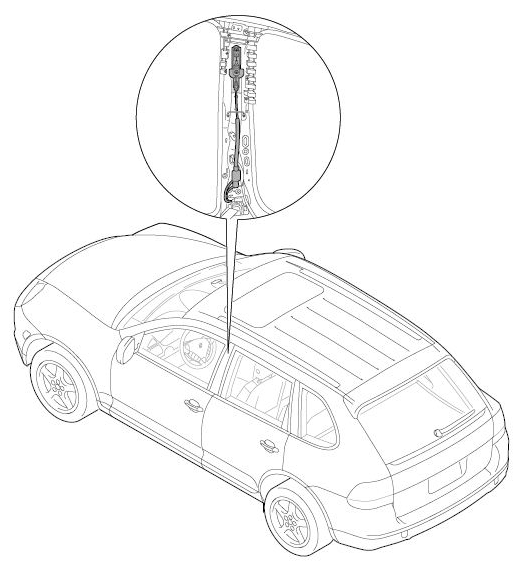

Fig 1: Overview Of Electric Adjustment Fitting

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

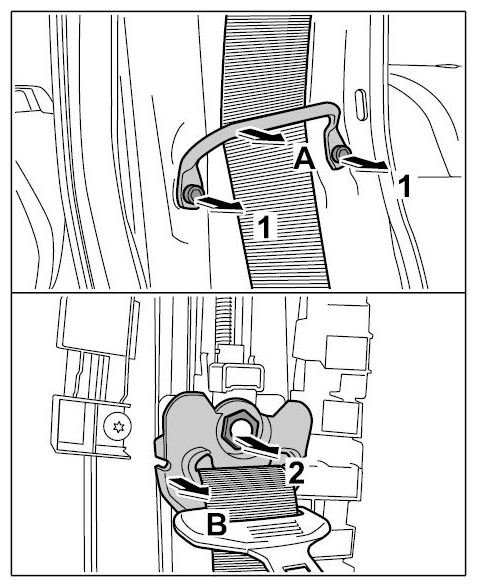

Unscrew the fastening screws -arrows 1- and remove the holder -arrow A- .

Fig 2: Removing Holder And Deflection Lug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew the fastening nut -arrow 2- and remove the deflection lug -arrow B- .

Fig 3: Removing Holder And Deflection Lug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

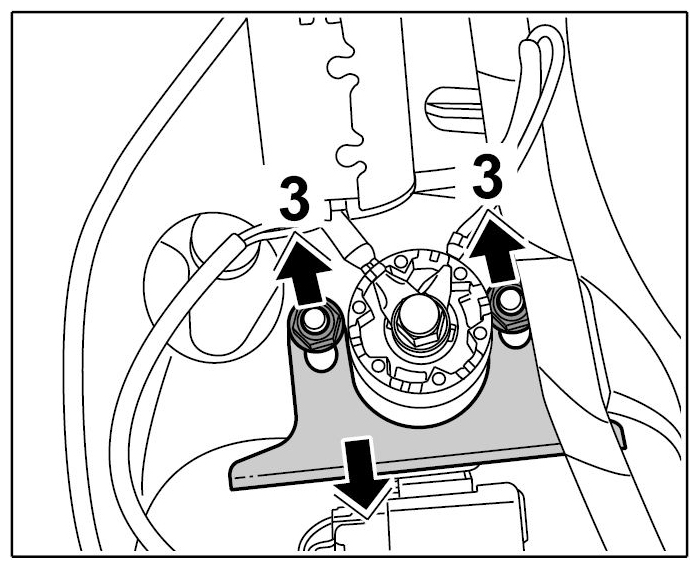

Undo fastening nuts -arrows 3- and remove holder with the plug connections -arrow- .

Fig 4: Removing Holder Fastening Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

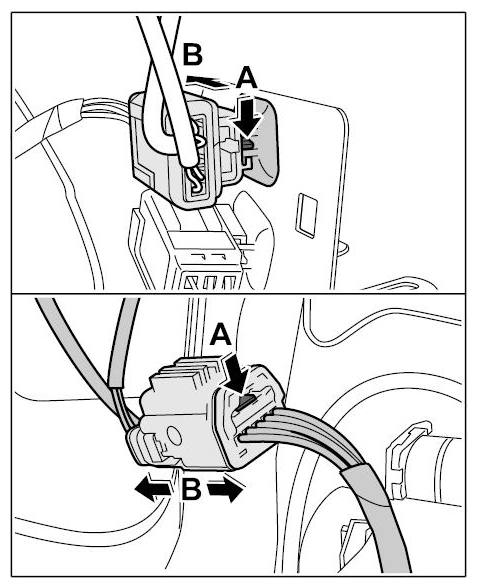

Release plug connection -arrow A- and remove it from the clip -arrow B- .

Fig 5: Disconnecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

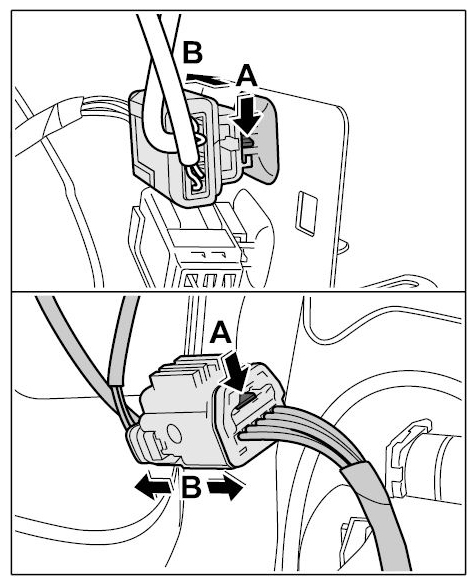

Release plug -arrow A- and disconnect plug connection -arrows B- .

Fig 6: Disconnecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

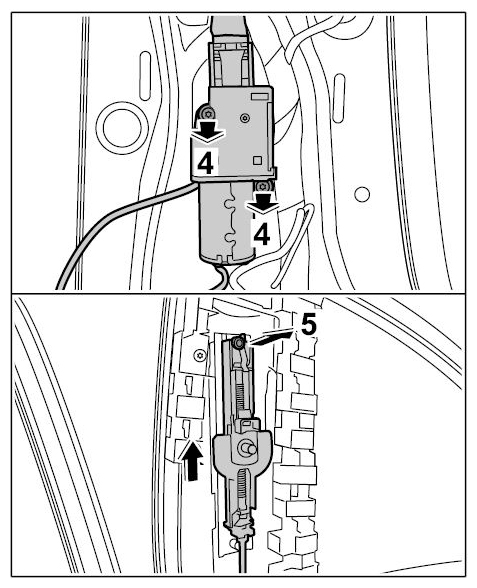

Unscrew fastening screws -arrows 4- .

Fig 7: Removing Adjustment Fitting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screw -arrow 5- and pull the adjustment fitting upwards -arrow- .

Fig 8: Removing Adjustment Fitting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

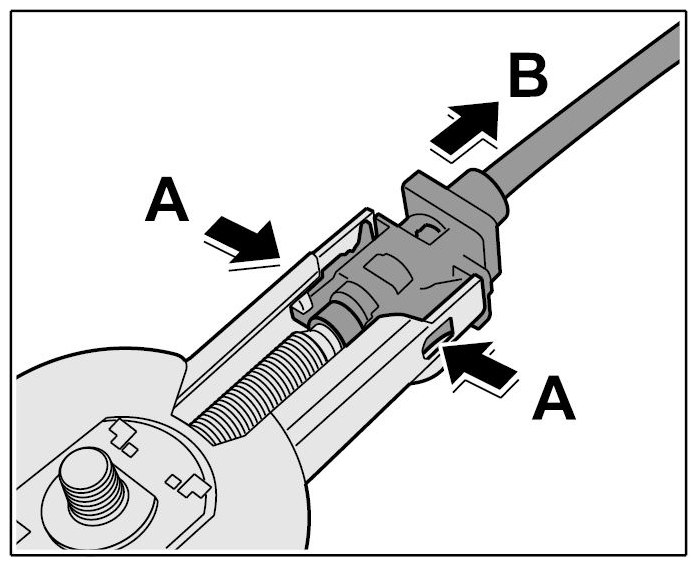

Press in locking lugs -Arrows A- and remove adjusting motor with the shaft -arrow B- .

Fig 9: Removing Adjusting Motor And Shaft
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
