Installing Electric Adjustment Fitting

Information

• Grease the spindle with acid-free grease before assembling the adjustment fitting.
  Fig 1: Adjusting Motor And Shaft

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

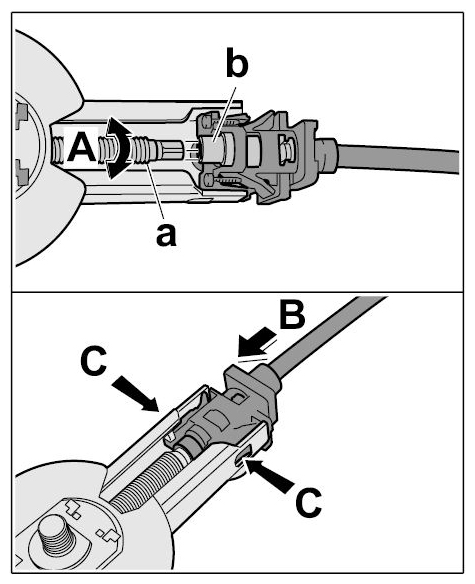

1. Align the spindle -A-  with the shaft -B- -Arrows A-  .
   Fig 2: Adjusting Motor And Shaft

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Insert the shaft into the adjustment fitting -arrow B-  until you feel the locking tabs -arrows C-  engage. Turn the spindle -A-  slightly, if necessary.
   Fig 3: Adjusting Motor And Shaft

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • The fastening screws for the support plate -arrow 5- and adjustment fitting must be replaced following removal for safety reasons.
     Fig 4: Fastening Support Plate And Adjustment Fitting Screws

     Courtesy of PORSCHE CARS NORTH AMERICA, INC.

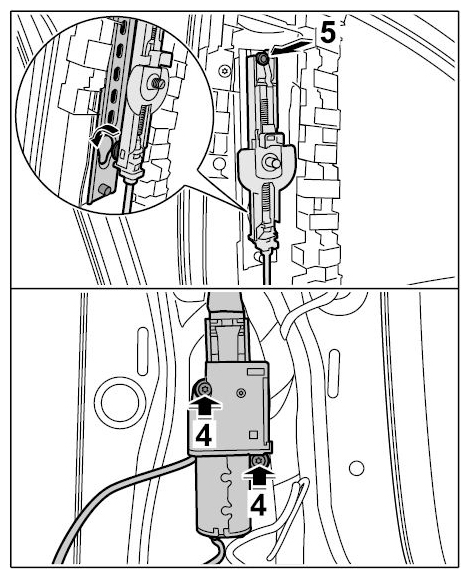

3. Engage the adjustment fitting at the bottom -arrow-  and tighten at the top with the fastening screw -arrow 5-  . → Tightening torque: 3.0 ft lbs.
   Fig 5: Fastening Support Plate And Adjustment Fitting Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Screw the adjusting motor on securely using the fastening screws -arrows 4-  . → Tightening torque: 1.5 Nm (1.0 ft lbs.)
   Fig 6: Fastening Support Plate And Adjustment Fitting Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

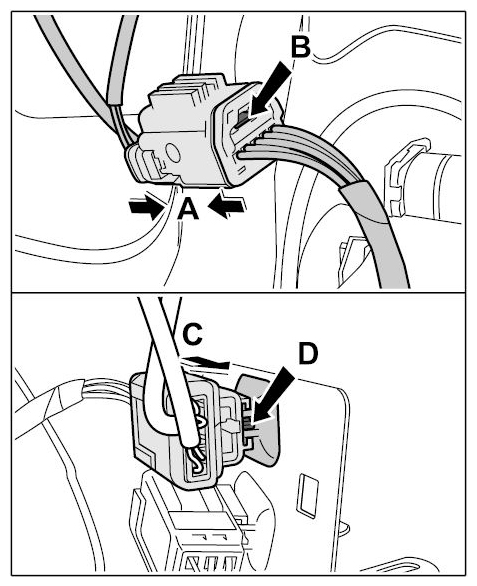

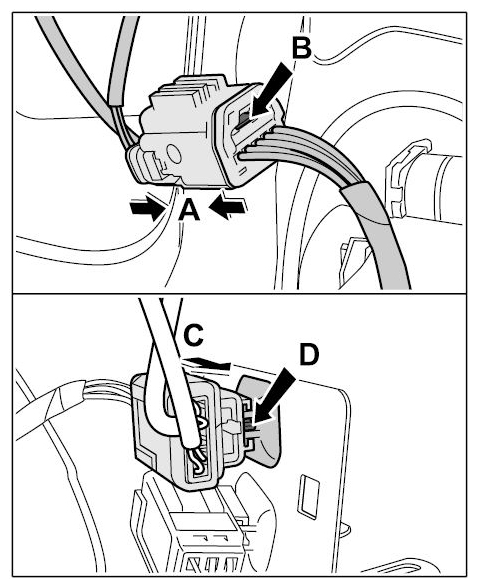

5. Push plug connection together -Arrows A-  until the locking lug -arrow B-  is felt to engage.
   Fig 7: Connecting Plug Connections

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Push the plug connection onto the clip -arrow C-  until you feel the locking hook -arrow D-  engage.
   Fig 8: Connecting Plug Connections

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

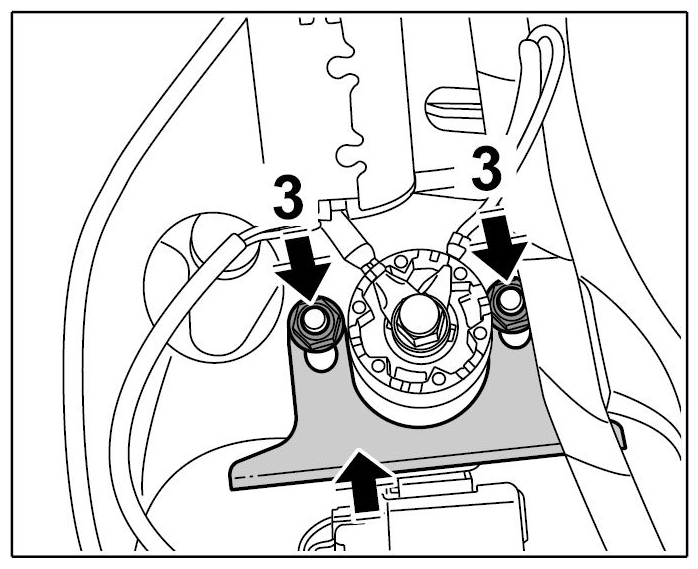

7. Position the support in installation position -arrow-  and secure with the fastening nuts -arrows 3-  . → Tightening torque: 6.0 ft lbs.
   Fig 9: Installing Support Mounting Nut

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • Once the fastening nut has been tightened, the deflection lug must level out on its own in a vertical position or in the relevant support direction.
     Fig 10: Fitting Deflection Lug

     Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • Once the fastening nut has been tightened, the deflection lug must level out on its own in a vertical position or in the relevant support direction.
     Fig 11: Fitting Deflection Lug

     Courtesy of PORSCHE CARS NORTH AMERICA, INC.

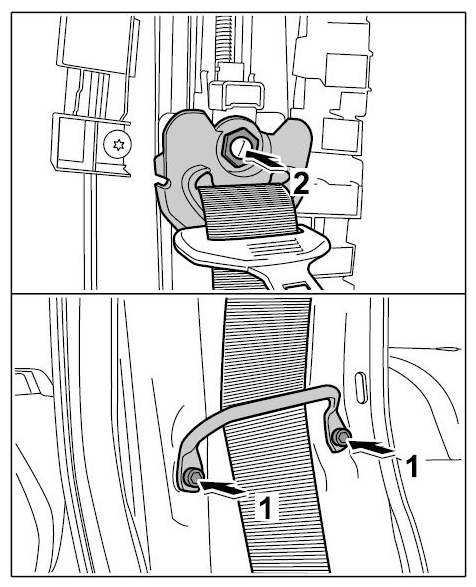

8. Tighten the deflection lug on the adjustment fitting with the fastening nut -arrow 2-  . → Tightening torque: 37 ft lbs.
   Fig 12: Installing Deflection Lug And Holder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Screw the holder on securely using the fastening screws -arrows 1-  . → Tightening torque: 4.5 Nm (3.0 ft lbs.)
   Fig 13: Installing Deflection Lug And Holder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
