Removing Rear Belt Lock

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

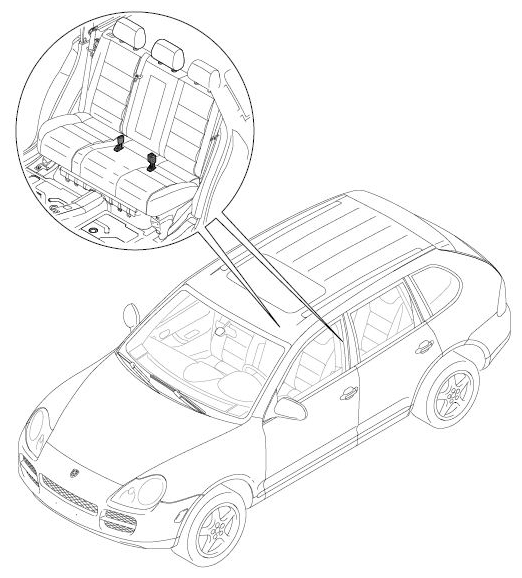

Fig 1: Identifying Rear Belt Lock

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

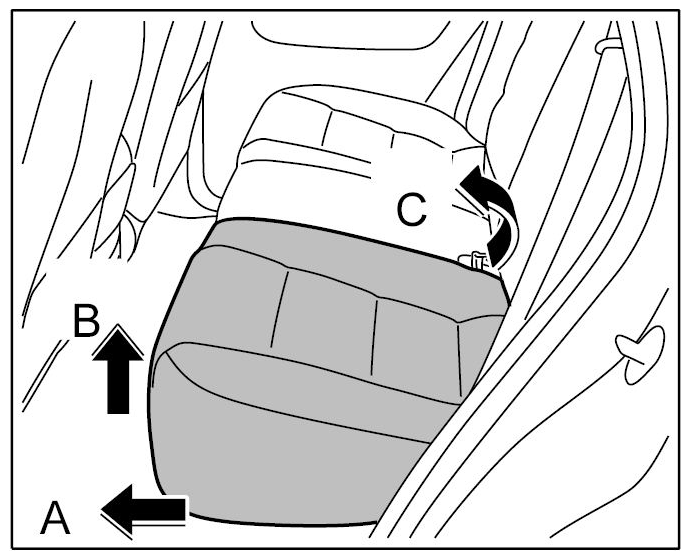

Lift front edge of right back seat -arrow A- , pull out to the front -arrow B- , and fold forward -arrow C- .

Fig 2: Lifting Up Front Edge Of Right Back Seat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

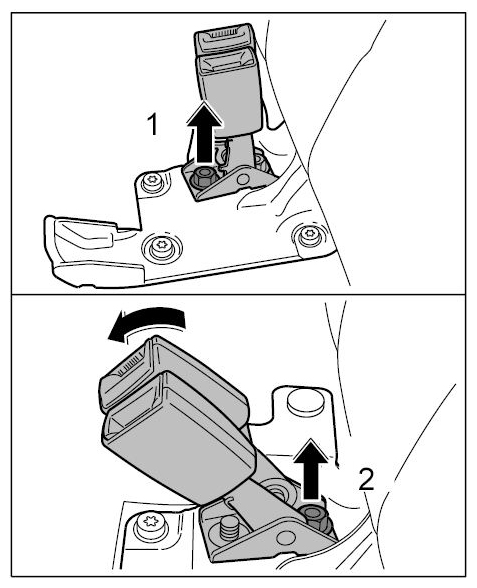

Unscrew front fastening nut -1- .

Fig 3: Removing Belt Buckle Front Fastening Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold belt buckle forward -arrow- .

Fig 4: Removing Belt Buckle Front Fastening Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew rear fastening nut -2- .

Fig 5: Removing Belt Buckle Rear Fastening Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove belt buckle.
