Installing Seat-Belt Buckle

Information

Always replace the fastening screws and nuts after customer service and reworking. The micro-self-locking screws must not be treated, greased or loosened and then screwed on again.

Information

• Once fitted, the seat-belt buckle must be able to turn smoothly around the fastening point.

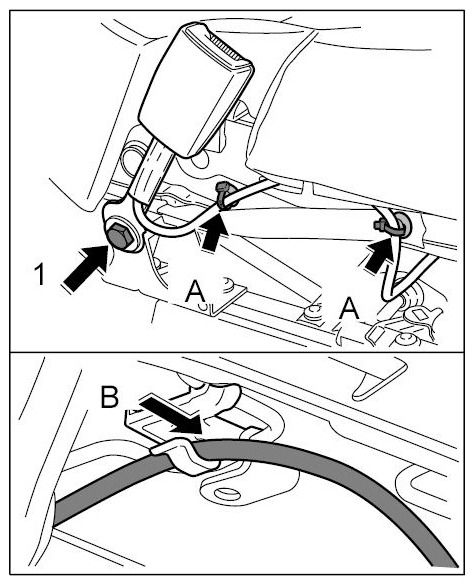

  Fig 1: Locating Tie-Wraps

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

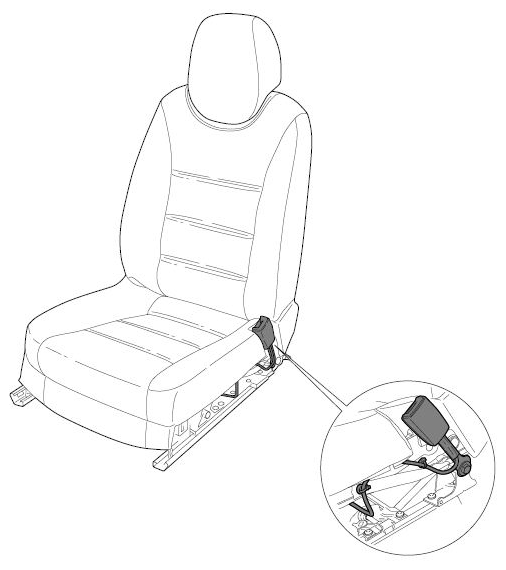

Fig 2: Identifying Belt Buckle

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Install belt buckle and tighten with the fastening screw -1-  . → Tightening torque: 50 Nm (37 ft lbs.)

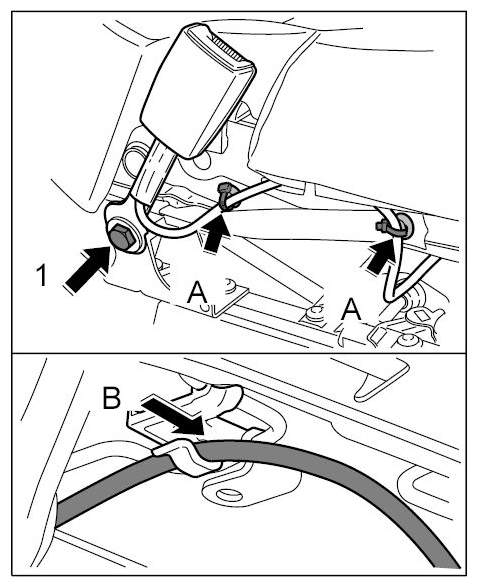

   Fig 3: Installing Belt Buckle

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Attach the cable with tie-wraps -A-  to the two clips and engage in the bracket on the inner spring -arrow B-  .
   Fig 4: Installing Belt Buckle

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Connect clip to plug -arrow A-  until the lock is felt to engage.

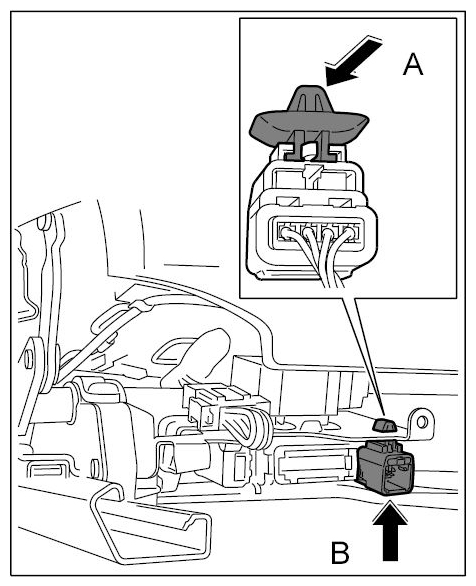

   Fig 5: Locating Clip And Plug

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Plug the connector together with clip onto the retaining frame -arrow B-  until the clip perceptibly locks into the retaining frame.
   Fig 6: Locating Clip And Plug

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Install front seat. → Installing Front Seat
6. Carry out work instruction after disconnecting the battery. → WM 9000IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY (ALL MODELS) .
