Installing Cooling Fan (Electric Fan) On Dfi Engines

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Installing electric fan for air conditioning =>

Push fan cable with control unit through the radiator frame from underneath.

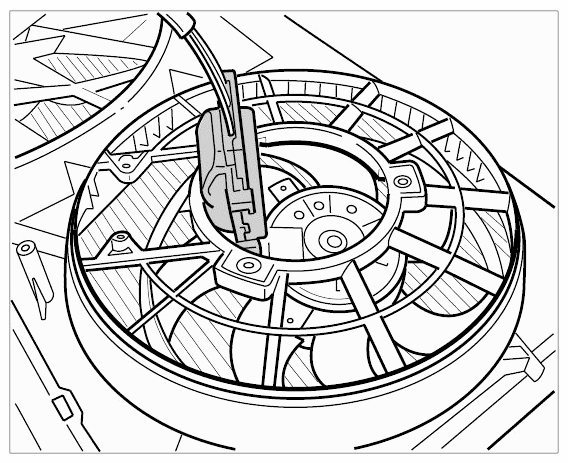

Fig 1: Identifying Engine Cooling Fan
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten the three fastening screws. → Tightening torque: 4 Nm (3 ft lbs.)

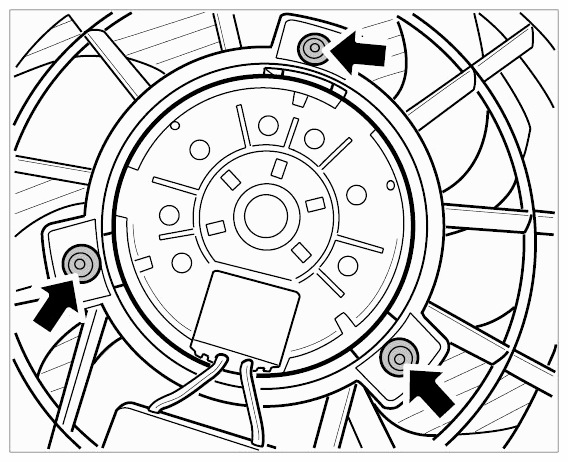

Fig 2: Identifying Air Conditioning Fan Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Route cable correctly and clip electric connector into the frame at the top.

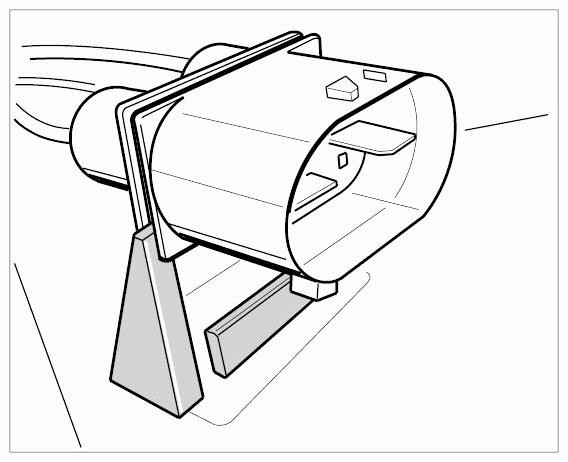

Fig 3: Identifying Electric Connector On Radiator Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing electric fan for engine cooling =>

Push the fan into the frame from underneath and tighten the three fastening screws. → Tightening torque: 4 Nm (3 ft lbs.)

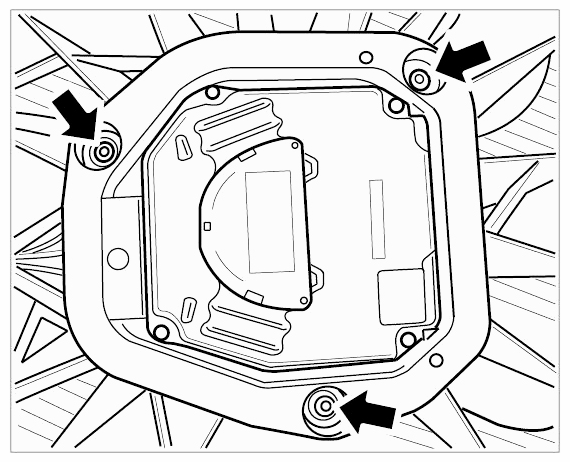

Fig 4: Identifying Engine Cooling Fan Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

6. Route connecting cable correctly and clip electric connector into the radiator frame at the top.

Fig 5: Identifying Electric Connector On Radiator Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
