Subsequent Work

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit drive belt. → 137819 REMOVING AND INSTALLING DRIVE BELT ON V6 DFI ENGINES

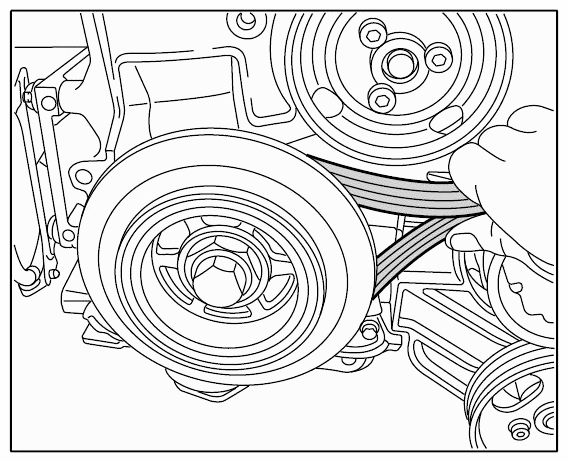

    Fig 1: Fitting Drive Belt
    G09409061Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fit cowl for throttle body. → WM 243519 REMOVING AND INSTALLING AIR BOX FOR THROTTLE HOUSING ON DFI ENGINES (INTAKE PIPES UPSTREAM OF THROTTLE VALVE)
  3. Install fan frame. → WM 192019 REMOVING AND INSTALLING COOLING FAN HOUSING (RADIATOR FRAME) ON DFI ENGINES
