Removing Vibration Balancer (Crankshaft Pulley)

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Incorrect handling of tools

Risk of damage to the body

→ Only use tools approved by Porsche.

→ Always ensure that the tool is seated correctly.

→ Protect the body and interior of the vehicle from damage with protective covers.

→ Cover delicate components with cardboard or sheetmetal panels.

Block the vibration balancer using a brace T10069 and loosen the hexagon-head bolt (a/f 27).

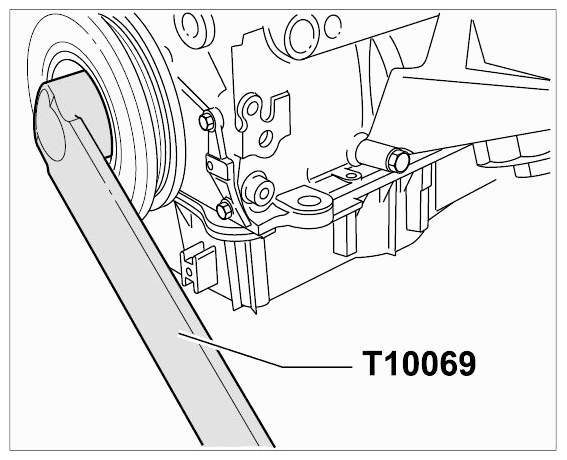

Fig 1: Loosening Vibration Balancer Hexagon-Head Bolt
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew the hexagon-head bolt and remove the vibration balancer by pulling it forward.

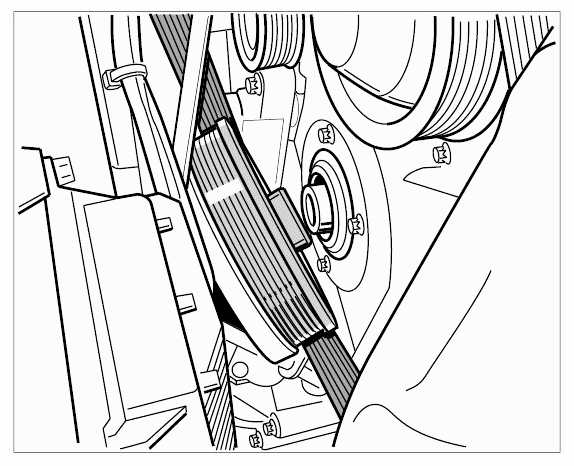

Fig 2: Identifying Vibration Balancer
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
