Preliminary Work

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Put on protective covers.
  2. Remove fan frame. → Removing Cooling Fan Housing (Radiator Frame)
  3. Remove cowl for throttle body. → Removing Air Box For Throttle Housing (Intake Pipe Upstream Of Throttle Valve)
  4. Mark rolling direction of drive belt with chalk and remove drive belt from the vibration balancer. → Removing And Installing Drive Belt

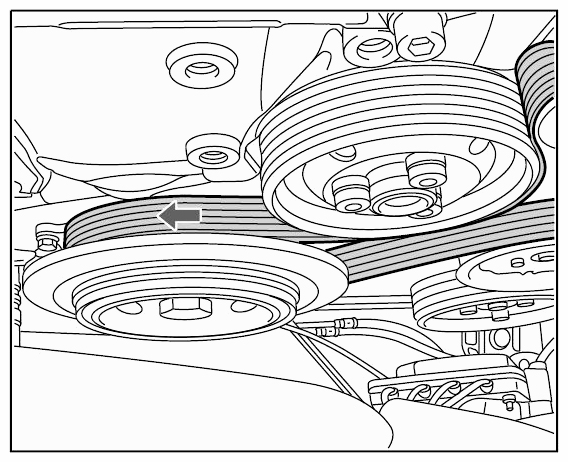

    Pfeil  - Rolling direction of drive belt

    Fig 1: Identifying Rolling Direction Of Drive Belt
    G09409054Courtesy of PORSCHE CARS NORTH AMERICA, INC.
