Installing Belt Tensioner

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Screw a screw (M8 x 50) into the new belt tensioner until the belt tensioner is slightly tensioned. -arrow-

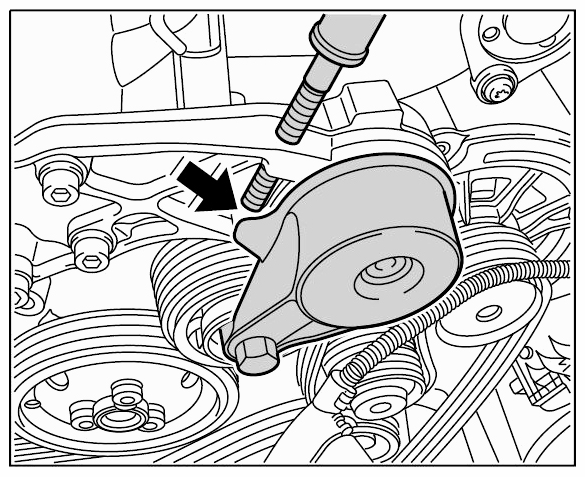

    Fig 1: Locating Belt Tensioner
    G09409046Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fit belt tensioner.
  3. Tighten fastening screws for the belt tensioner. -arrows-  → Tightening torque: 25 Nm (19 ft lbs.)

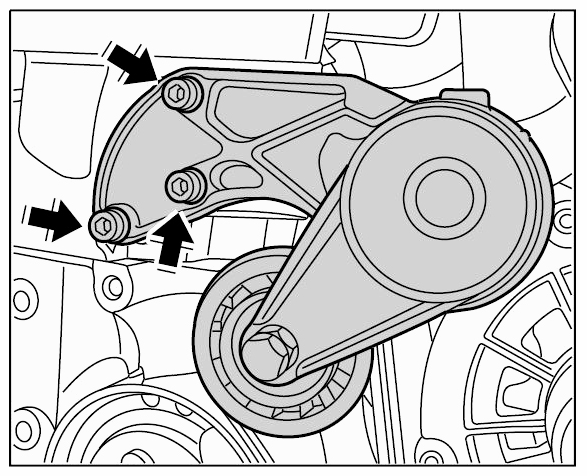

    Fig 2: Locating Belt Tensioner Mounting Bolts
    G09409047Courtesy of PORSCHE CARS NORTH AMERICA, INC.
