Tools And Materials: Tools
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

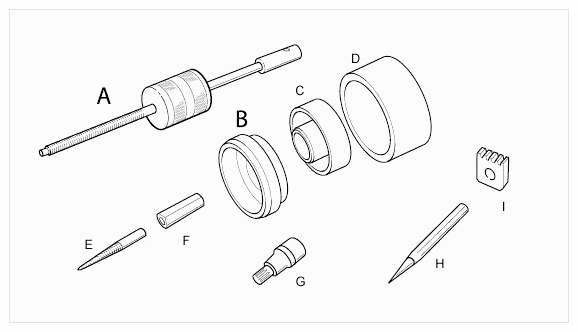

| Item | Designation of tool | Explanation |
|---|---|---|
| -A- | Slide hammer kit no. 168 | |
| -B- | T10122/1 sleeve | Included in insertion device T10122. |
| -C- | T10122/2 assembly sleeve | Included in insertion device T10122. |
| -D- | T10122/3 pressure piece | Included in the insertion device T10122 . |
| -E- | Extractor tip | Included in slide hammer kit no. 168 |
| -F- | Connecting piece | Included in slide hammer kit no. 168 |
| -G- | Multiple-tooth socket-wrench insert no. 31 | M12 |
| -H- | Drift punch no. 167 | |
| -I- | Toothed segment 201a |
