Installing Sealing Ring For Crankshaft Flywheel

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Make sure the sealing ring is dry before fitting it and do not deform or touch the sealing lips because this can damage the sealing ring and result in a loss of engine oil.

Prepare insertion device for crankcase sealing ring.
1. 1.1. Insert the sleeve into the assembly sleeve

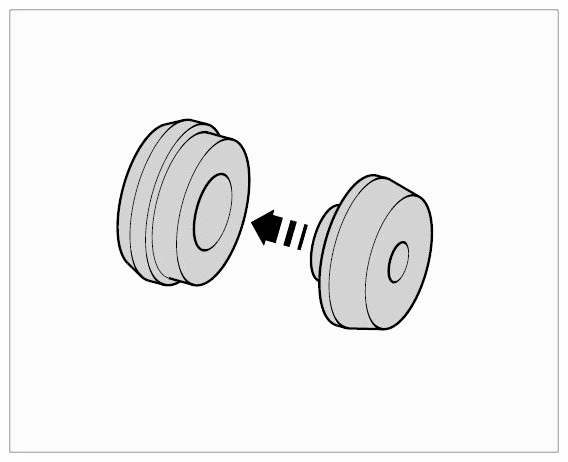

  Fig 1: Inserting Sleeve Into Assembly Sleeve
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Push the sealing ring (with outer side first) over the sleeve until it is on the assembly sleeve.

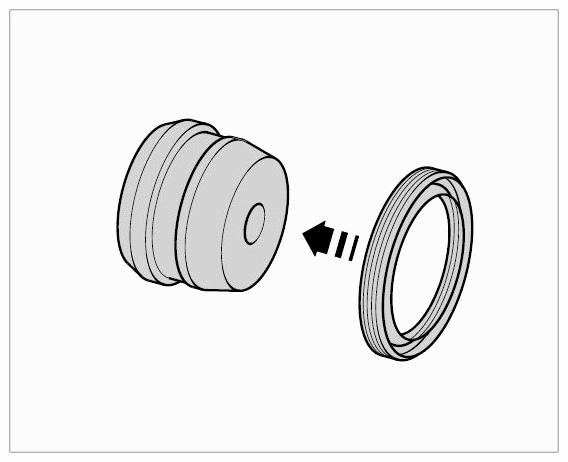

  Fig 2: Pushing Sealing Ring On Assembly Sleeve
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. Now pull the sleeve off the assembly sleeve.
Install crankshaft sealing ring.
1. 2.1. Position assembly sleeve together with crankshaft sealing ring on the crankshaft stub.
2. 2.2. Position pressure piece and use a rubber hammer to tap the crankshaft sealing ring in evenly

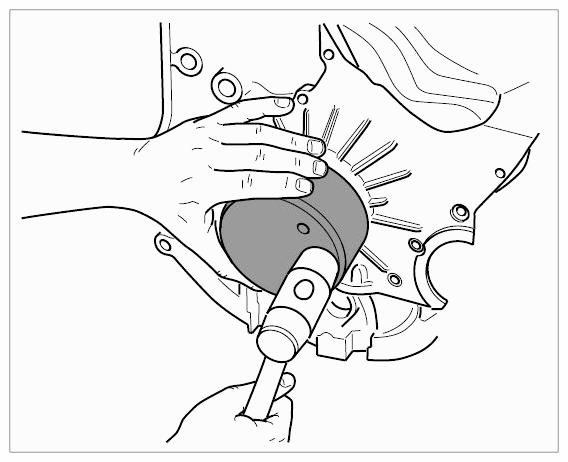

  Fig 3: Tapping Crankshaft Sealing Ring Using Rubber Hammer
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 2.3. Remove pressure piece and assembly sleeve.
4. 2.4. Check the position of the crankshaft sealing ring.
