WM 135919 Removing And Installing Sealing Ring For Crankshaft (Transmission Side) On 4.8-Litre DFI Engines (Cayenne S Tip, Cayenne S Man, Cayenne Turbo, Cayenne GTS Tip, Cayenne GTS, Cayenne Turbo S): Tools
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Designation | Type | Number | Description | |
|---|---|---|---|---|

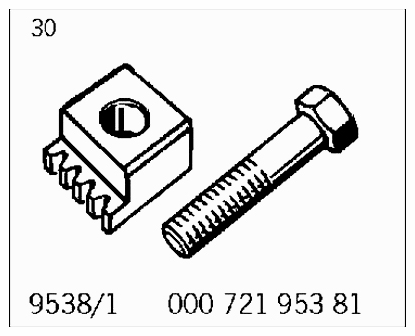

| Toothed segment | Special tool | 9538/1 | ||

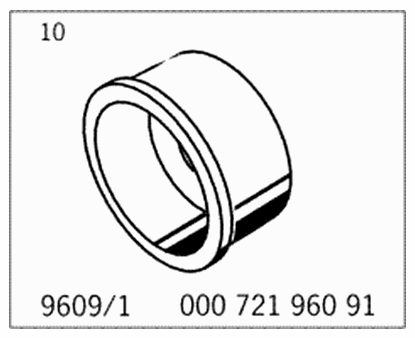

| Pressure piece | Special tool | 9609/1 | ||

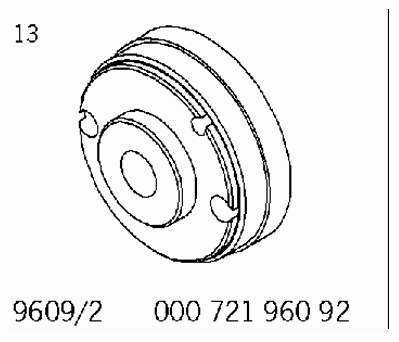

| spacer | Special tool | 9609/2 | ||

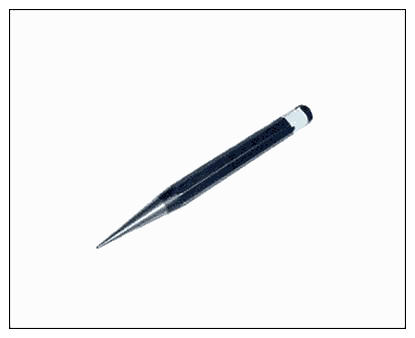

| Drift punch, 1 mm tip, | Commercially available tool | Nr.167 | ||

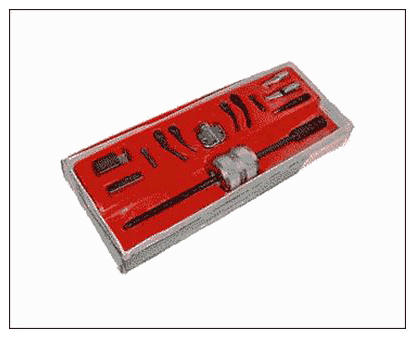

| Slide hammer kit | Commercially available tool | Nr.168 | ||

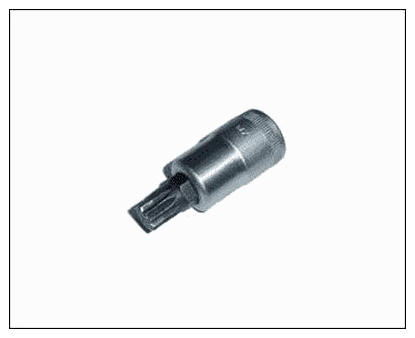

| Multiple-tooth socket-wrench insert, M12 | Commercially available tool | Nr.31 |
