Removing Sealing Ring For Crankshaft (Transmission Side)

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

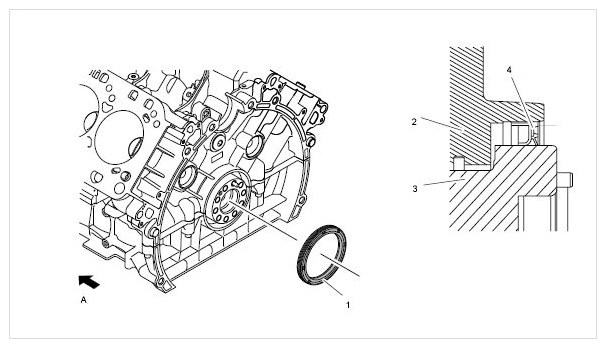

Fig 1: Identifying Crankcase, Crankshaft And Radial Shaft Seal

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Radial shaft seal (use protection cap for radial shaft seal for fitting; only fit when crankcase is screwed on)
Crankcase
Crankshaft
Radial shaft seal (sectional view)

Direction of travel

Use the drift punch, 1-mm tip Nr.167 to beat a small hole at a non-rubberised spot (rectangular window in the ring) on the sealing ring.

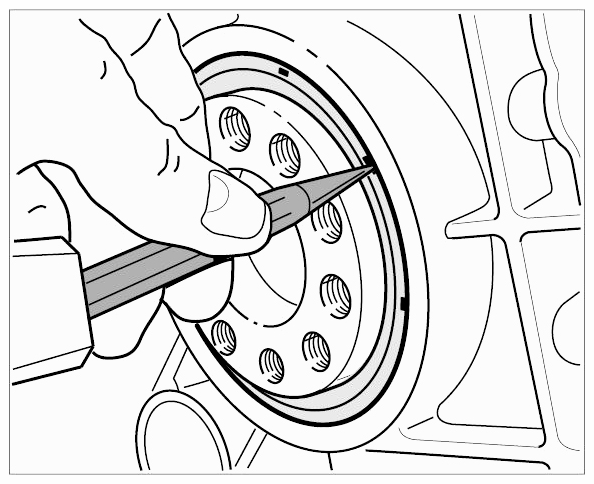

Fig 2: Making Small Hole On Sealing Ring Using Drift Punch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in the extractor tip. Use the slide hammer kit Nr.168 to knock out the extractor tip together with the sealing ring. Alternatively, you can screw in a suitable tapping screw and pull out the sealing ring using a pliers.

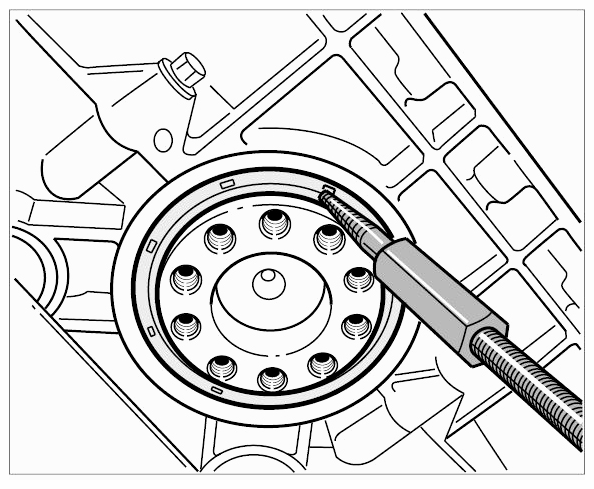

Fig 3: Knocking Out Sealing Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clean the crankshaft flange. The crankshaft flange must not be dirty or rusty. If necessary, clean it with brake cleaner and sand off any rust with a metal-polishing pad (e.g. Never Dull).

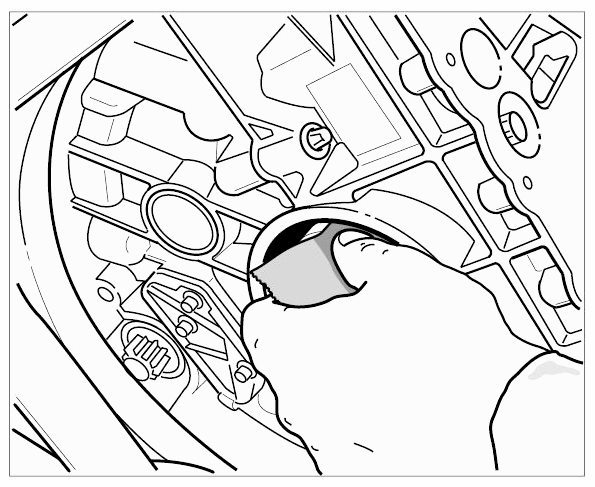

Fig 4: Cleaning Crankshaft Flange
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
