Replacing Speed Sender Wheel

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. If the drive plate -6-  for the inductive pickup (speed sender) was removed from the crankshaft, it must always be replaced  . The drive plate must never be reused.

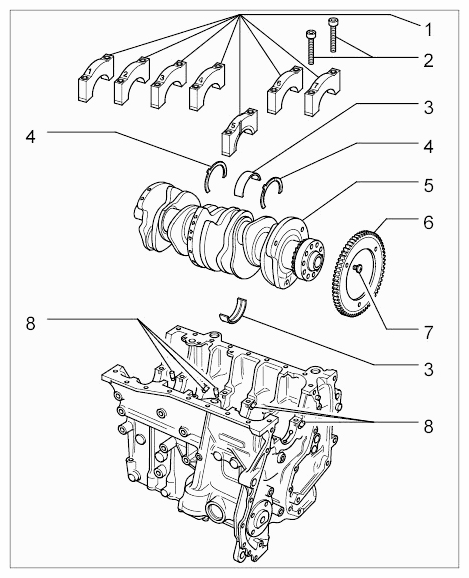

    Fig 1: Identifying Crankshaft Components
    G09408995Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. Crankshaft bearing covers
    2. Internal serration screw on crankshaft bearing cover
    3. Bearing shell
    4. Thrust washer for bearing cover 5
    5. Crankshaft
    6. Drive plate for inductive pickup
    7. Countersunk screw on drive plate for inductive pickup → Initial tightening: 10 Nm (7.5 ft lbs.)  → Torque angle: 90°
    8. Oil spray jet
  2. Tighten the countersunk screws -7-  on the drive plate to the specified tightening torque.
