Installing Crankshaft

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Install the crankshaft.

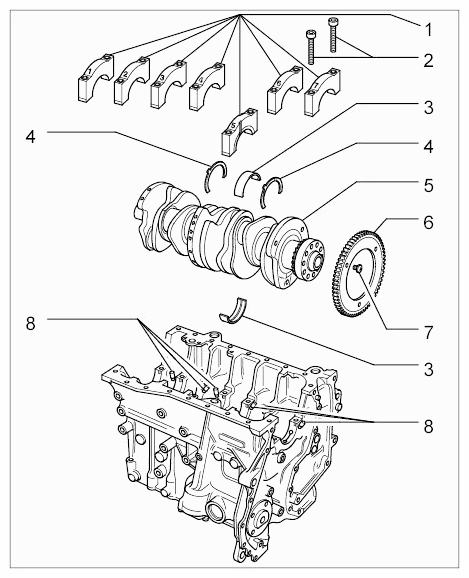

Fig 1: Identifying Crankshaft Components
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Crankshaft bearing covers
2. Internal serration screw on crankshaft bearing cover → Initial tightening: 30 Nm (22 ft lbs.) → Torque angle: 180°
3. Bearing shell must always be replaced
4. Thrust washer for bearing cover 5 must always be replaced
5. Crankshaft
6. Drive plate for inductive pickup
7. Countersunk screw on drive plate for inductive pickup → Initial tightening: 10 Nm (7.5 ft lbs.) → Torque angle: 90°
8. Oil spray jet
1. 1.1. Oil bearing shells with engine oil and place them on the crankshaft/crankcase.

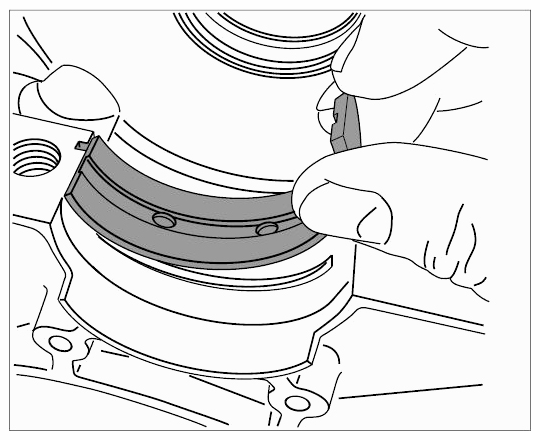

  Fig 2: Twisting Locks
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Always replace bearing shells. Observe relevant classification.
3. 1.3. Fit thrust bearing no. 5 with thrust washers -4- (insert using grease, lubricating groove facing outwards) and then fit the remaining bearing covers.
4. 1.4. Tap crankshaft bearing covers on securely as far as they will go using a rubber hammer so that the tightening torque will be accurate.
5. 1.5. Internal serration screws on the crankshaft bearing covers -2- must always be replaced and screwed in by hand.
6. 1.6. Then gradually tighten the bearing covers from the inside out to the specified torque -2- .
7. 1.7. As a test, turn the crankshaft several times to check that it turns smoothly.
