Component Overview Up To October 2008

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

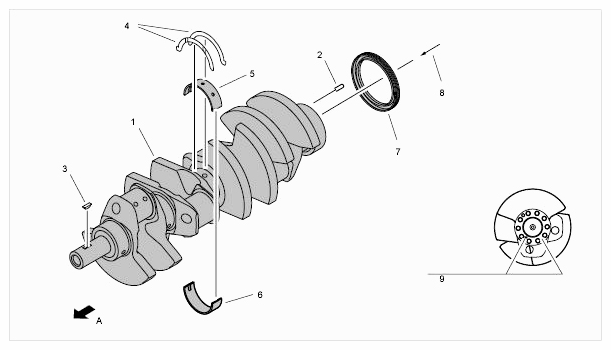

Fig 1: Overview Of Crankshaft
G09409107Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Crankshaft
  2. Straight pin, 6 x 20
  3. Spring, 5 x 6.5
  4. Thrust washer (grooves facing out)
  5. Main bearing shell, upper
  6. Main bearing shell, lower
  7. Shaft sealing ring => Do not touch sealing ring lip! Clean crankshaft flange and oil lightly
  8. View of crankshaft flange
  9. Crankshaft bearing classification (three types) G  Yellow, B  Blue, R  Red (example: GGGGG-BBBB; 5 main shaft bearings with yellow marking, 4 double (8) connecting rod bearings with blue marking) => For numbering, see A
  1. Direction of travel (main bearing 1 is the first in direction of travel against output)
