Notes On Replacing Pressure Hoses

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Faulty pressure hoses can be replaced in sections.
- The pressure hoses are correctly fitted when the first colour marking (self applied) is no longer visible and the second colour marking is still visible .

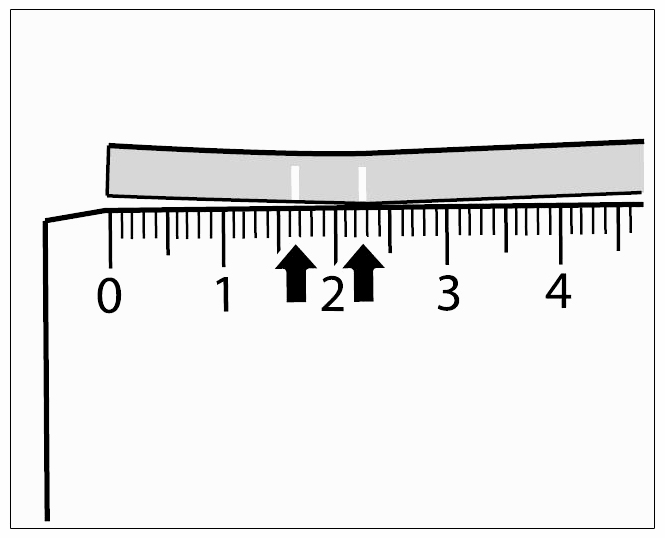

  Fig 1: Locating Pressure Hoses Colour Marking
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
To check that the pressure hose is fitted correctly, pull it slightly against the insertion direction. If it is fitted correctly, it cannot be pulled out or only pulls out when great force is applied.

The following points must be observed when choosing the repair point:

The repair point must lie in an area protected from water spray
The push-on connector must be fastened with tie-wraps to the structure or a cable guide
Straight pipe sections should be chosen for the repair
Position the pressure hose back in its original fastenings
Insert the ends of the pressure hoses firmly into the push-on connector.
