WM 433419 Removing And Installing Sensor For Body: Removal: Removing

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Front sensor

First push together the sensor connector -arrow- firmly (makes removal easier!). Lift connector lock and then remove connector!

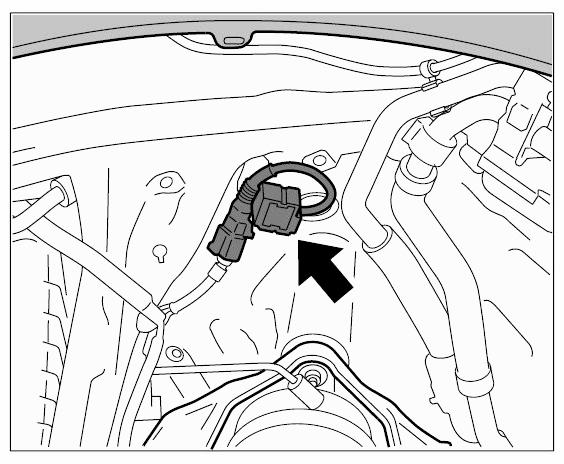

Fig 1: Identifying Front Sensor Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen screw of holder and remove sensor.

Rear sensor

First push together the sensor connector -arrow- firmly (makes removal easier!). Lift connector lock and then remove connector!

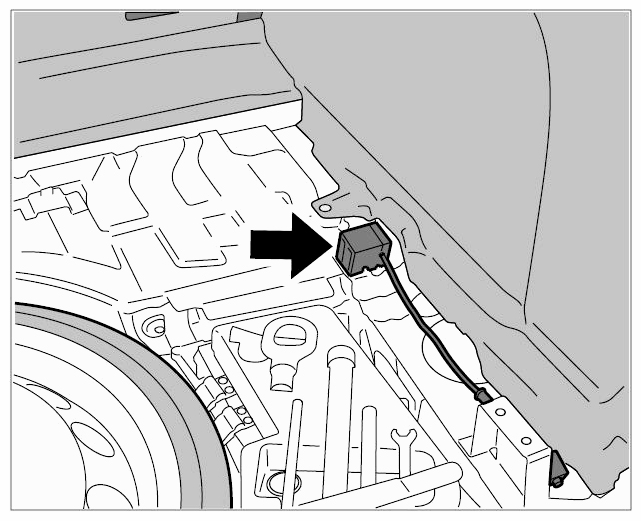

Fig 2: Identifying Rear Sensor Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen nut of holder and remove sensor.
