Preliminary Work

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

These instructions for removal and installation describe all the sensors for the body (two sensors at the front, one sensor at the rear).

Installation position at front: Position 8, under the left and right wings.

Installation position at rear: Position 8, under the boot floor plate on the right (sensor can be accessed from the interior!).

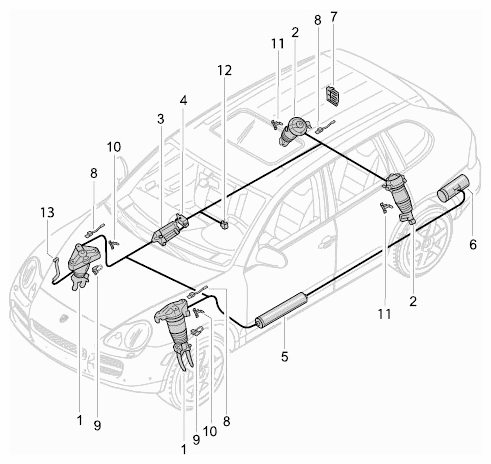

Fig 1: Identifying Sensor Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front sensor

Lift the vehicle. → WM 4000V0 Lifting the vehicle
Remove wheel housing liner. → WM 505619 REMOVING AND INSTALLING FRONT WHEEL HOUSING LINER

Rear sensor

Information

For removing and installing the rear sensor, it is not necessary to lift the vehicle.

The rear sensor can be accessed from the interior.

Remove boot floor plate (centre part) and remove only the right side cover. → 700619 INSTALLING AND REMOVING LUGGAGE COMPARTMENT TRIM (LOADSPACE COVER)
