WM 433419 Removing And Installing Sensor For Body: Installing

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Front sensor

Insert sensor with holder in the correct position -arrow- and tighten the fastening screw.

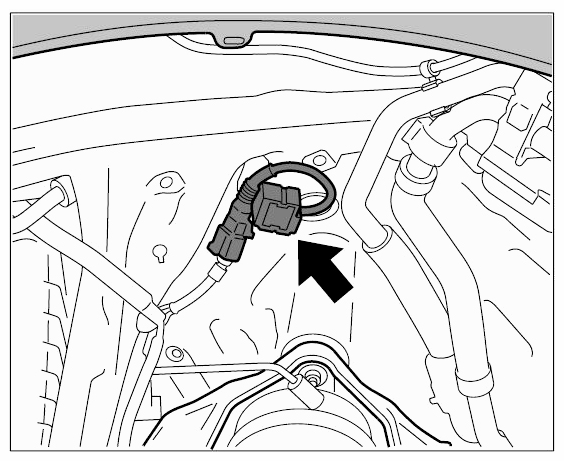

Fig 1: Identifying Front Sensor Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in connector. Pay attention to correct line routing.

Rear sensor

Insert sensor with holder in the correct position -arrow- and tighten the fastening nut.

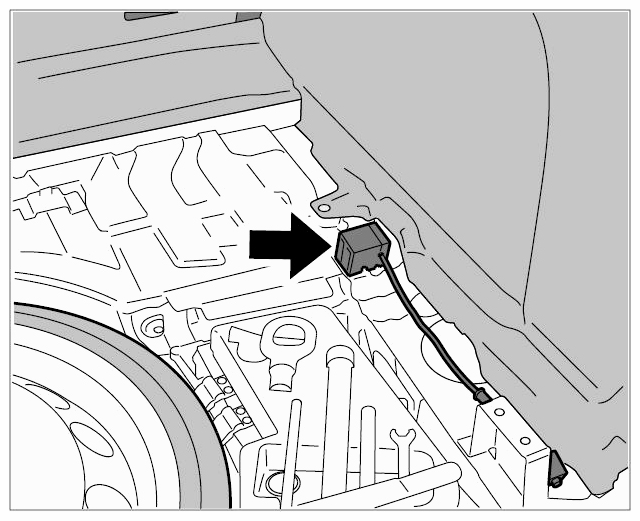

Fig 2: Identifying Rear Sensor Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in connector. Pay attention to correct line routing.
