Removing And Installing

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The selector switch is bolted onto the centre console from underneath.

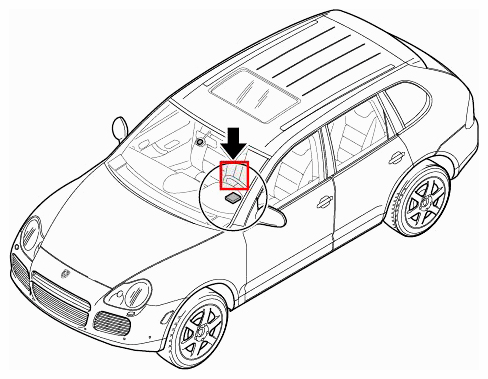

Fig 1: Locating Selector Switch On Centre Console

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove centre console cover and cup holder. → WM 681919 REMOVING AND INSTALLING COVER FOR CENTRE CONSOLE

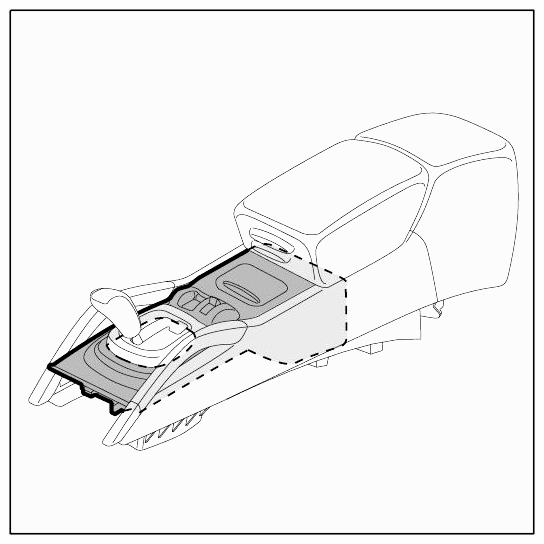

Fig 2: Identifying Centre Console
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew the screws -Arrows- on the back of the centre console cover and take out the selector switch.

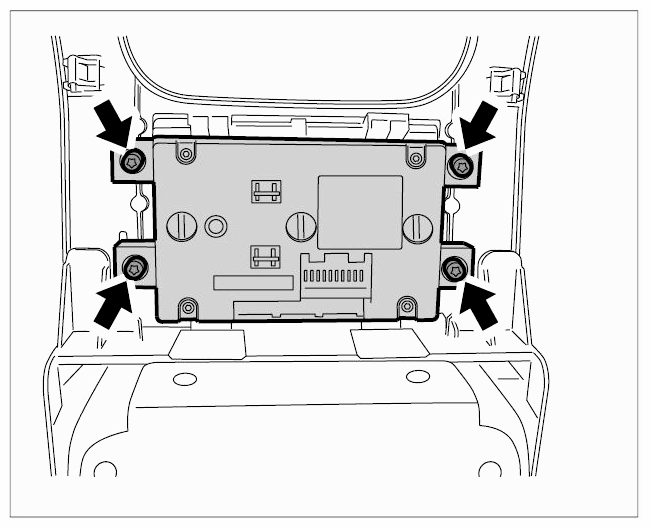

Fig 3: Locating Selector Switch Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit the new selector switch into the centre console cover.
Install centre console cover. → WM 681919 REMOVING AND INSTALLING COVER FOR CENTRE CONSOLE
