Replacing PDCC Reservoir

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Open the engine compartment.
Remove the trim panel on the left. → WM 700219 REMOVING AND INSTALLING FRONT TRIM (ENGINE COMPARTMENT)
NOTE:
Contamination caused by fluids
- PDCC system failure
→ Only draw out fluid using a syringe that is used exclusively for Pentosin.

→ The (PDCC) system must never become contaminated by other fluids and dirt.
Remove Pentosin from the reservoir using a suitable syringe until the reservoir is virtually empty.

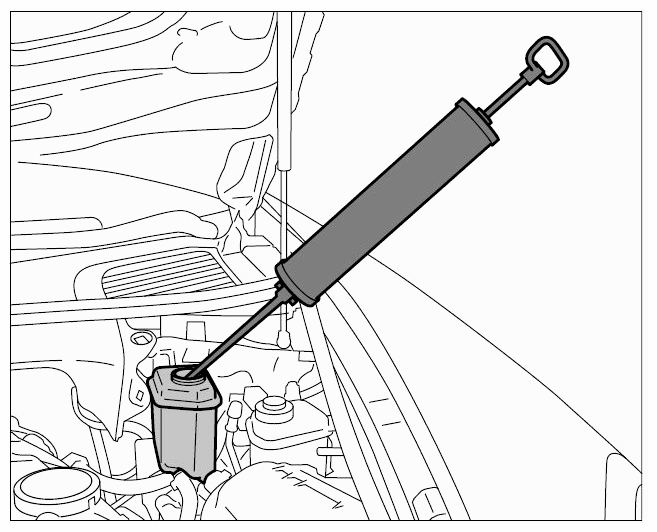

Fig 1: Removing Pentosin
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lay a suitable cloth under the PDCC reservoir to prevent emerging Pentosin from getting onto the water lines. Loosen the hose clamps and pull the reservoir off the lines.
Fit new reservoir and secure the hoses.
Fill the reservoir with Pentosin and check the fluid level. → 430501 CHECKING FLUID LEVEL (PDCC)
Close the Pentosin reservoir and carefully clean adjacent areas with water.
Re-fit the trim panel and close the engine compartment lid. → WM 700219 REMOVING AND INSTALLING FRONT TRIM (ENGINE COMPARTMENT)
