Technical Values

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value	Tolerance 1
Mount for compressor	M8 x 50 thread	Tightening torque	20 Nm (15 ftlb.)
Mount for compressor	M8 x 70 thread	Tightening torque	20 Nm (15 ftlb.)
Mount for valve block	M6 thread	Tightening torque	10 Nm (7.5 ftlb.)
Mount for front pressure accumulator	M8 x 16 thread	Tightening torque	20 Nm (15 ftlb.)
Mount for rear pressure accumulator	M6 x 15 thread	Tightening torque	8 Nm (6 ftlb.)
Mount for rear pressure accumulator	M8 x 16 thread	Tightening torque	23 Nm (17 ftlb.)
Pressure line to valve block		Tightening torque	4 Nm (3 ftlb.)
Pressure line to spring strut		Tightening torque	3 Nm (2 ftlb.)
Residual pressure retaining valve to spring strut	Position 6	Tightening torque	10 Nm (7.5 ftlb.)
Union nut on residual pressure retaining valve		Tightening torque	3 Nm (2 ftlb.)
Mounting saddle to air spring	M8 thread; position 1	Tightening torque	30 Nm (22 ftlb.)
Bearing to shock absorber	M12 x 1.5 thread; position 3	Tightening torque	60 Nm (44 ftlb.)	+/-5 Nm (+/- 3.5 ftlb.)
Residual pressure retaining valve to spring strut	Position 6	Tightening torque	10 Nm (7.5 ftlb.)
Mounting saddle to air spring	M8 thread; position 1	Tightening torque	30 Nm (22 ftlb.)
Bearing to shock absorber	M12 x 1.5 thread; position 3	Tightening torque	60 Nm (44 ftlb.)	+/-5 Nm (+/- 3.5 ftlb.)
Protection cap to shock absorber	Position 9	Tightening torque	8 Nm (6 ftlb.)
Tank mount	M6 thread	Tightening torque	10 Nm (7.5 ftlb.)
Front-axle valve block to wheel housing	M6 thread	Tightening torque	10 Nm (7.5 ftlb.)
Rear-axle valve block to suspension sub-frame	M8 x 30 thread	Tightening torque	23 Nm (17 ftlb.)
Cover to rear-axle valve block	M6 thread torque	Tightening	10 Nm (7.5 ftlb.)

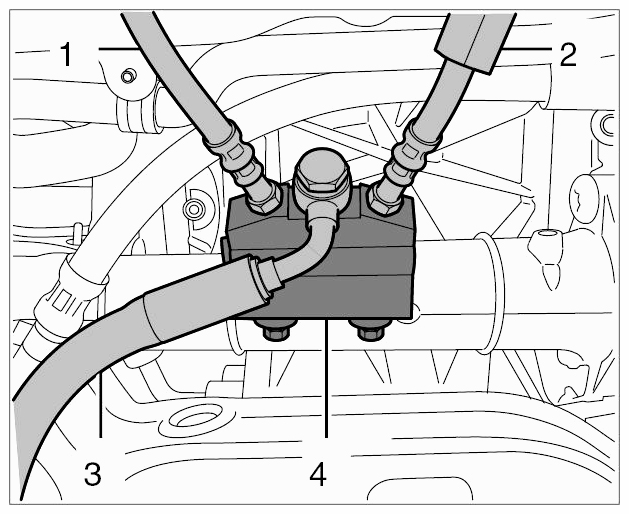

Flow distributor (fluid flow) to front-axle transmission	M6 x 15 thread; item 4	Tightening torque	10 Nm (7.5 ftlb.)

Cap screws on flow distributor (fluid flow)	M14 x 1.5 thread; positions 1 and 2	Tightening torque	28 Nm (21 ftlb.)	+/-4 Nm (+/- 3 ftlb.)
Banjo bolt to flow distributor (fluid flow)	M14 x 1.5 thread; item 3	Tightening torque	20 Nm (15 ftlb.)	+40° (+30 ftlb.)
Anti-roll-bar mount to anti-roll bar	M12 x 1.5 x 50 thread	Tightening torque	90 Nm (67 ftlb.)	+90°
Cap screws	M14 x 1.5/M16 x 1.5 with rim	Tightening torque	28 Nm (21 ftlb.)	+/-4 Nm (+/- 3 ftlb.)
Cap screws	M16/M18 with O-ring	Tightening torque	32 Nm (24 ftlb.)	+/-5 Nm (+/- 3.5 ftlb.)
Banjo bolts	M14	Tightening torque	35 Nm (26 ftlb.)	+/-5 Nm (+/- 3.5 ftlb.)
Banjo bolts	M16	Tightening torque	45 Nm (33 ftlb.)	+/-5 Nm (+/- 3.5 ftlb.)
Bleeder valve		Tightening torque	14 Nm (10.5 ftlb.)	+4 Nm (+3 ftlb.)
