Removing The Roof Transport System

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

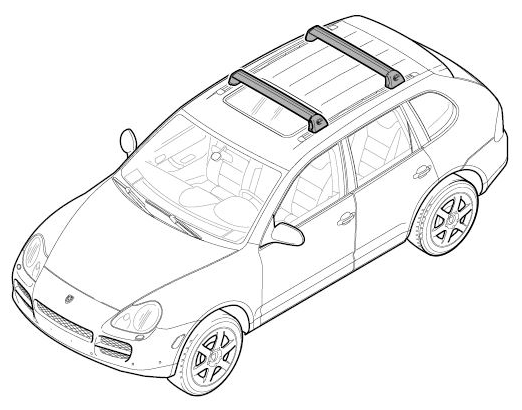

Fig 1: Identifying Roof Transport System

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The steps for removing the Roof Transport System are the same as those to install it, but in reverse order.

Unlock carrier.
Move carrier to the guide rail cutout
Remove carrier from roof.
Close the cap.
1. 4.1. Press down the pawl -5- on the inside of the carrier feet and keep it depressed (-arrow A- ).
2. 4.2. Fold up cap -2- (-arrow B- ).
3. 4.3. Lock the cap -2- and pull out key.

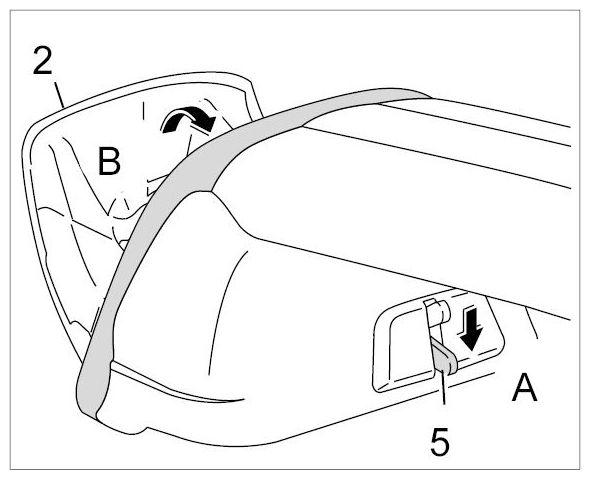

  Fig 2: Folding Up Cap
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
