Removing And Installing Wiring Harness In Vehicles With Trailer Hitch That Can Be Lowered Electrically

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

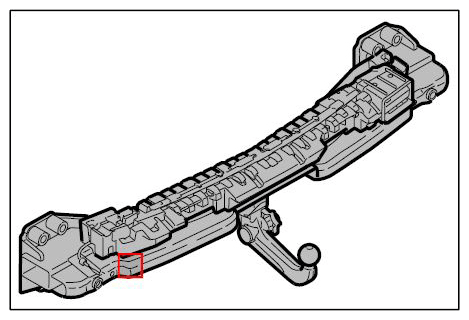

Fig 1: Identifying Trailer Hitch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pull off connector from servomotor.
1. 1.1. Release connector -1- (-Arrow A- ) and pull off (-Arrow B- ).

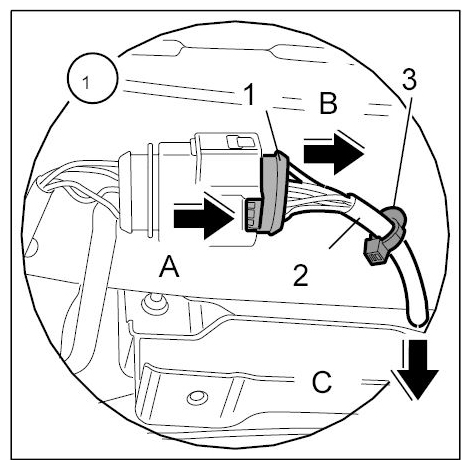

  Fig 2: Removing Connector
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release wiring harness.
1. 2.1. Pull out trailer hitch until the wiring harness -2- is accessible.
2. 2.2. Unclip wiring harness -2- from fixing clips -3- (-Arrows C- ).

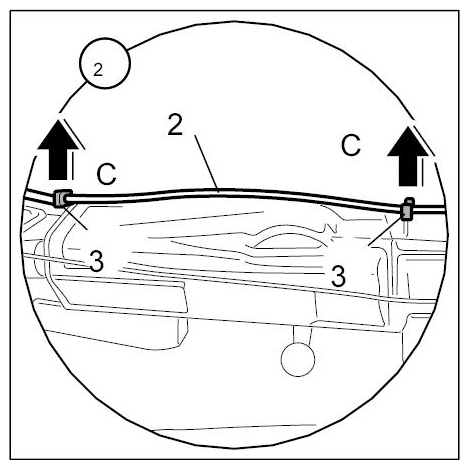

  Fig 3: Removing Wiring Harness
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation is performed in reverse order.
