Removing And Installing Foam Part In Vehicle With Externally Fitted Spare Wheel

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

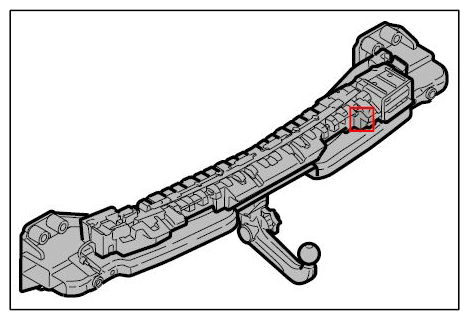

Fig 1: Identifying Trailer Hitch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pull connector off lock for spare wheel mount.
1. 1.1. Release connector -1, 2- (-Arrows A- ) and pull off (-Arrows B- ).

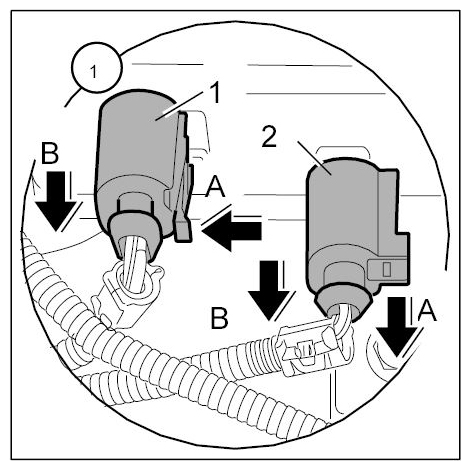

  Fig 2: Pulling Out Connector Off Lock
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Replace foam part.
1. 2.1. If the foam part -3- was damaged during removal, the new part must be shortened at the cutting line -X- .

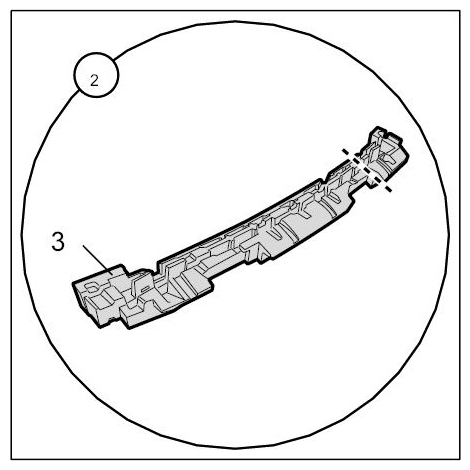

  Fig 3: Identifying Foam Part
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

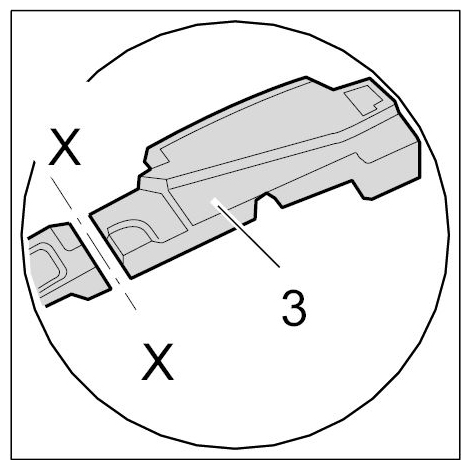

  Fig 4: Identifying Cutting Line
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation is performed in reverse order.
