Installing Mechanically Removable Trailer Hitch

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

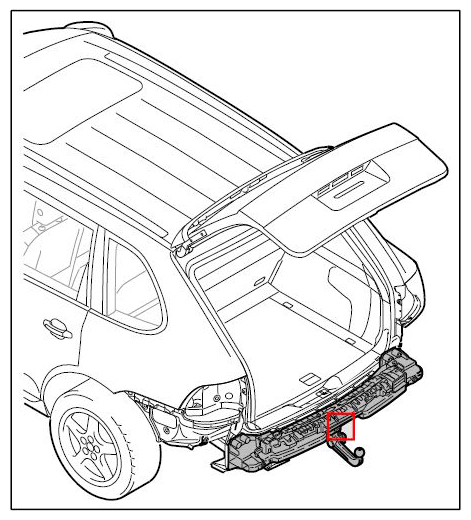

Fig 1: Identifying Trailer Hitch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only when replacing trailer hitch on vehicles with externally fitted spare wheel.

Fit rivet nuts for lock support - only when replacing trailer hitch on vehicles with externally fitted spare wheel.
1. 1.1. Insert rivet nuts into the bores of the lock support and rivet using blind rivet nut manual device Nr.125 .
Install trailer hitch.
1. 2.1. Replace sealing rings -6- (or -6- ).
2. 2.2. Fit trailer hitch -1- (-arrows A- ).
3. 2.3. Screw in new fastening screws -5- (or -5- ) and tighten to the specified torque. → Tightening torque: 110 Nm (81 ftlb.) +/-16.5 Nm (+/-12.5 ftlb.)

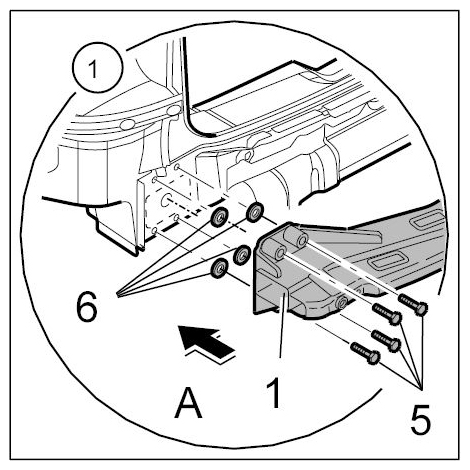

  Fig 2: Installing Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

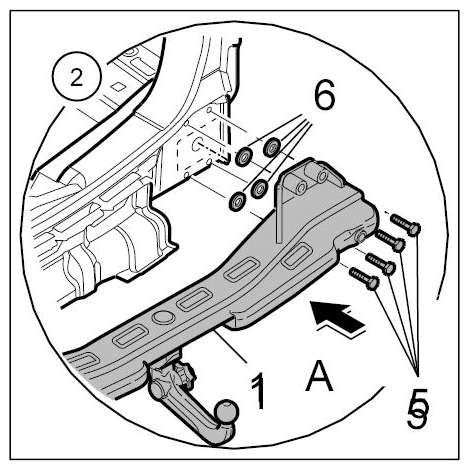

  Fig 3: Installing Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure wire harness.
1. 3.1. Clip wire harness -3- into fixing clips -4- (-arrows B- ).

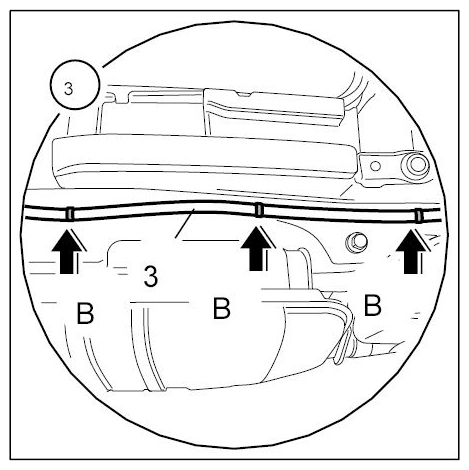

  Fig 4: Securing Wire Harness
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

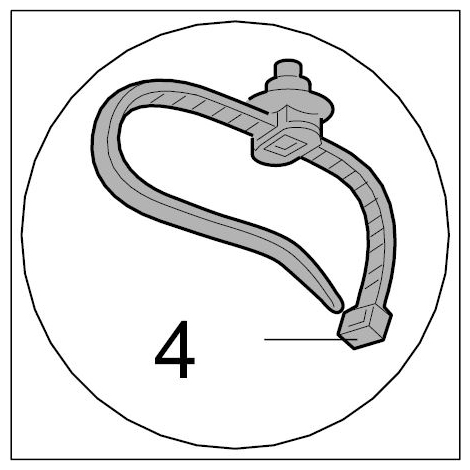

  Fig 5: Identifying Fixing Clips
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

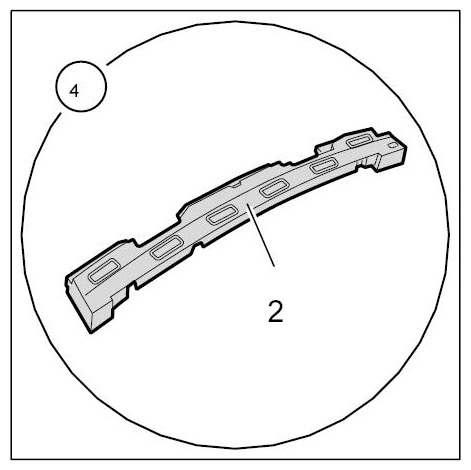

Prepare foam part for installation.
1. 4.1. Place a butyl sealing cord -7- on the underside of the foam part -2- in the areas shown.

  Fig 6: Preparing Foam Part
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

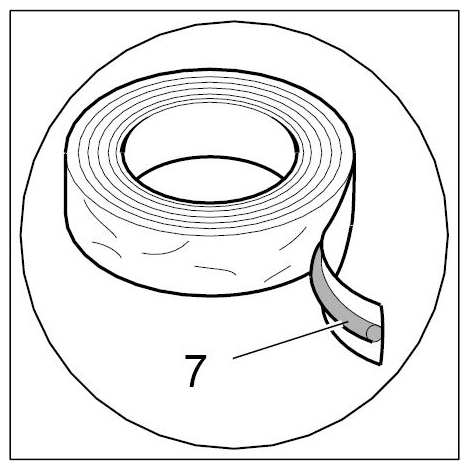

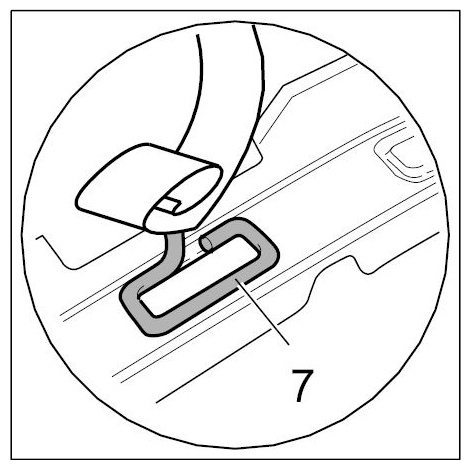

  Fig 7: Identifying Butyl Sealing Cord
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 8: Identifying Butyl Sealing Cord
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install foam part.
1. 5.1. Turn foam part -2- over (-arrow C- ), place it on trailer hitch -1- according to the contour and press down firmly (-arrow D- ).

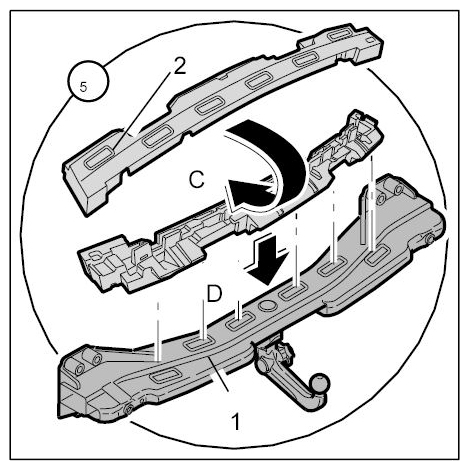

  Fig 9: Installing Foam Part
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
