Removing Rear-View Mirror

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

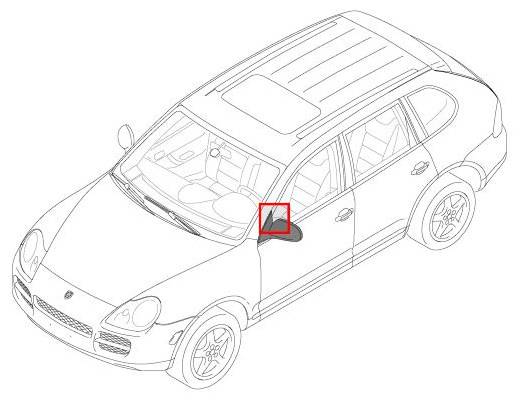

Fig 1: Identifying Rear-View Mirror

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove front door trim. → Removing front door trim panel

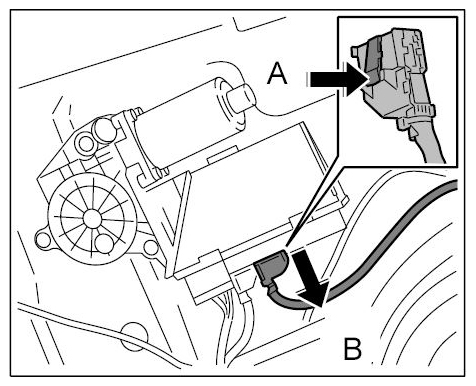

Release -arrow A- and remove -arrow B- electric connector from power window motor.

Fig 2: Removing Electric Connector From Power Window Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

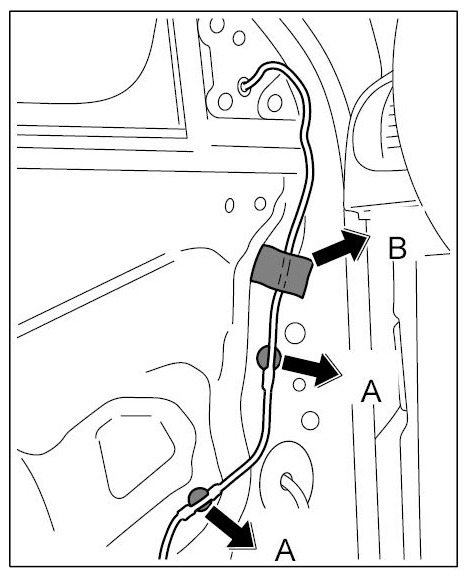

Unclip wiring harness with a loosening lever disassembly tool, universal Nr.21 (-arrows A- ) and detach one side of the adhesive felt -arrow B- .

Fig 3: Unclipping Wiring Harness And Adhesive Felt
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

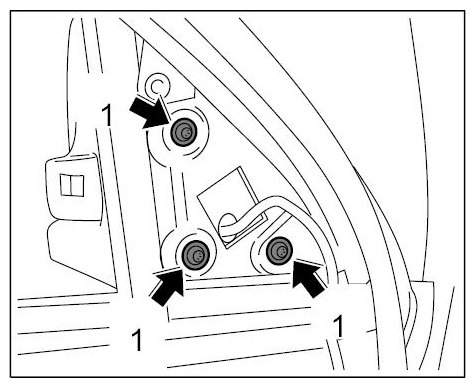

Unscrew fastening screws -arrows 1- .

Fig 4: Locating Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

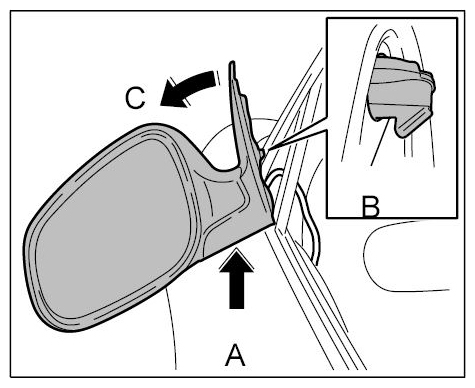

Lift mirror -arrow A- and detach the retaining pivot -B- .

Fig 5: Detaching Retaining Pivot
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold mirror downward -arrow C- and remove.

Fig 6: Folding Mirror Downward
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
