Installing Rear-View Mirror

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

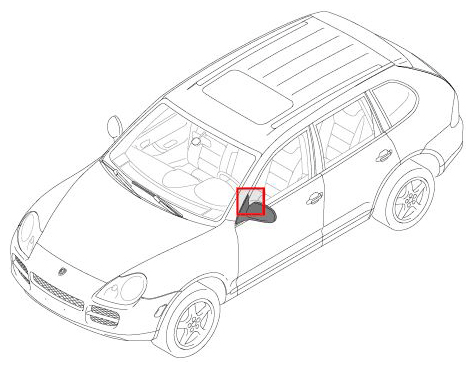

Fig 1: Identifying Rear-View Mirror

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

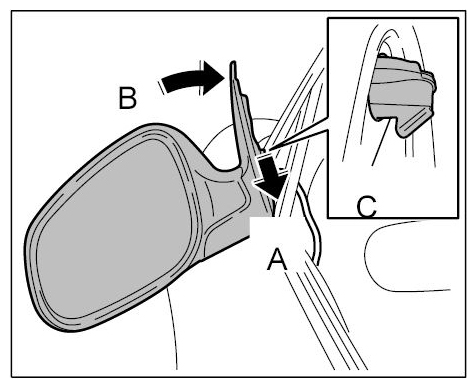

Attach mirror to window channel -Arrow A- and fold upward and inward -Arrow B- .

Fig 2: Attaching Mirror To Window Channel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press mirror Spiegel downward until the retaining pivot -C- engages in the window frame.

Fig 3: Pressing Mirror Spiegel Downward And Retaining Pivot
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

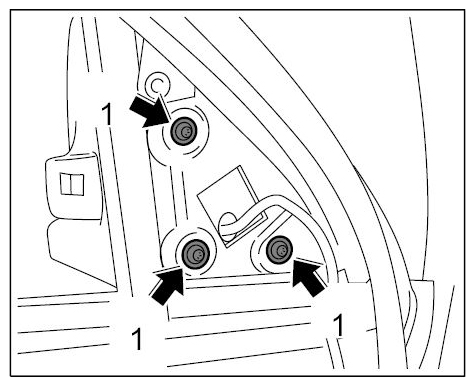

Screw down mirror on door frame -1- . → Tightening torque: 10 Nm (7.5 ftlb.)

Fig 4: Locating Screw Of Down Mirror
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

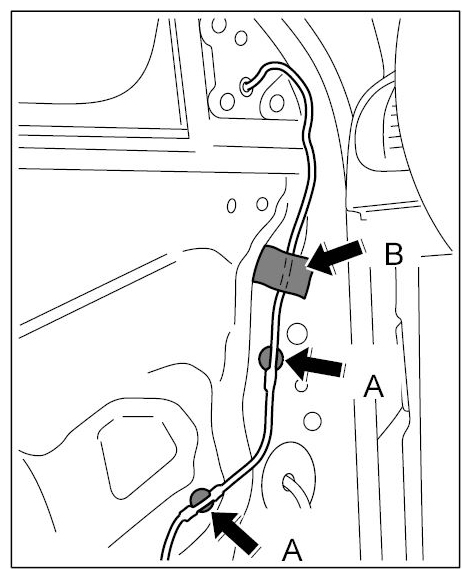

Clip wiring harness onto door inner panel -Arrow A- and fasten with adhesive felt -Arrow B- .

Fig 5: Clipping Wiring Harness Of Door Inner Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

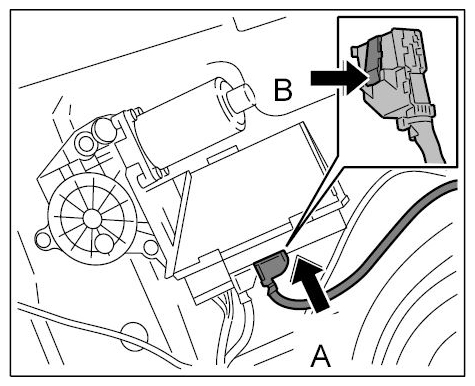

Fit connector to power window motor -Arrow A- and press in until the locking tab -Arrow B- is felt to engage.

Fig 6: Fitting Connector To Power Window Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install door trim panel. → Installing front door trim panel
