Installing Front Number Plate Cover

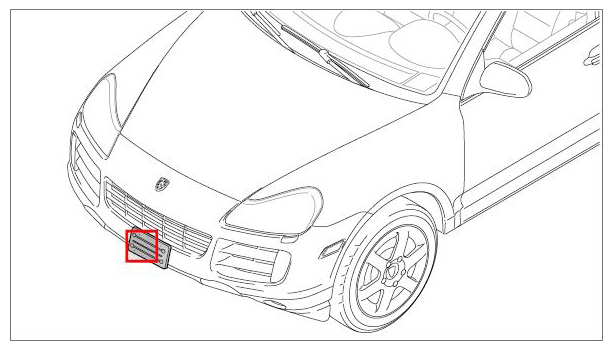

Fig 1: Identifying Installation Position Of Front Number Plate Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• The following description only applies to states in the USA in which a license plate is required at the front of the vehicle.

1. Stick an adhesive strip that can be written on -1-  approximately in the centre of the front apron.

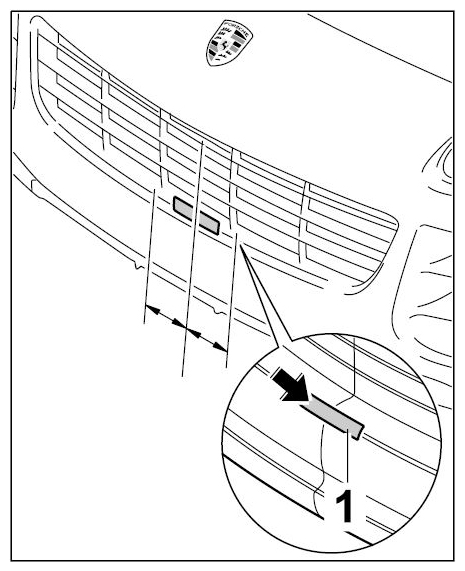

   Fig 2: Finding Centre Of Front Apron

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Find the centre between the vertical shafts on the air grille and mark this spot on the adhesive strip -1-  affixed to the front apron -arrow-  .
3. Approximately in the centre of the front number plate cover -1-  , affix a strip of adhesive tape that can be written on -2-  .

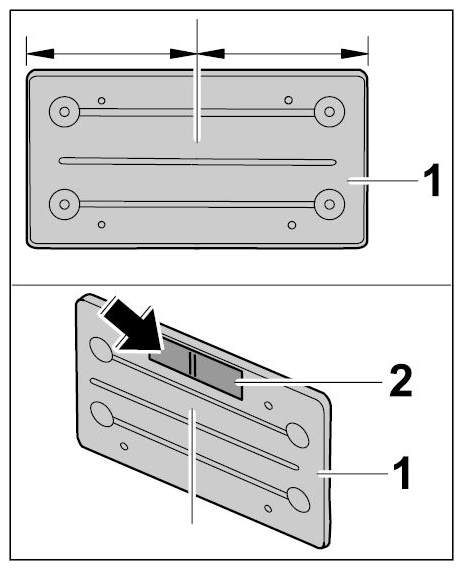

   Fig 3: Finding Centre Of Front Number Plate Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Find the centre between the outer edges of the front number plate cover -1-  and mark this spot on the strip of adhesive tape -2-  affixed to the front number plate cover -arrow-  .
5. Position the front number plate cover -2-  on the contour of the front apron -arrow-  and align it according to the markings on the adhesive tape.

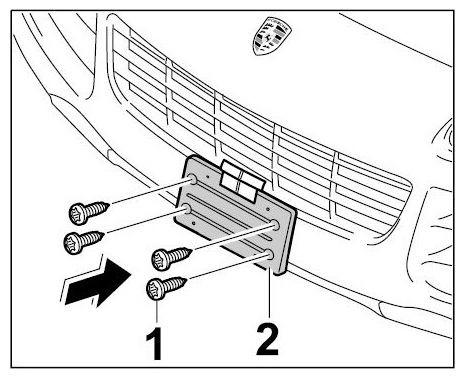

   Fig 4: Installing Front Number Plate Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Screw in self-tapping fastening screws -1-  .
7. Remove adhesive strips -1-  and -2-  (-arrows-  ).

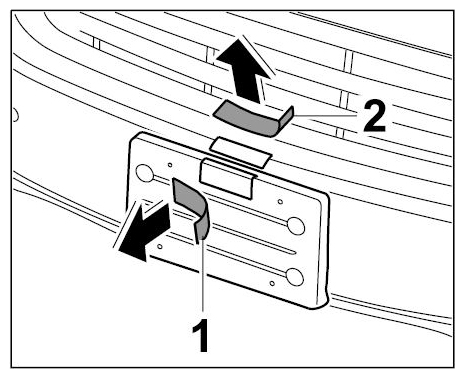

   Fig 5: Removing Adhesive Strips

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
