Installing Front Number Plate Cover (ECE)

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

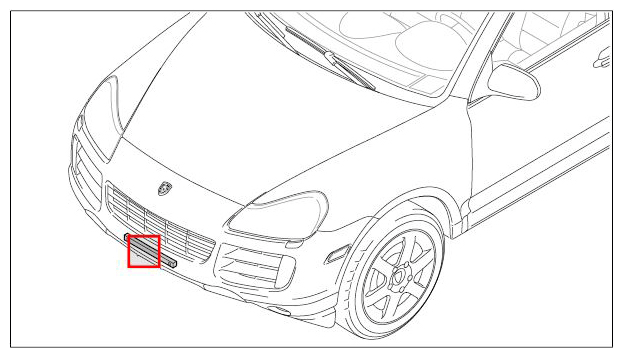

Fig 1: Identifying Installation Position Of Front Number Plate Cover
G09412384Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Position front number plate cover -2-  at the specified bore holes on the front apron -arrow-  .

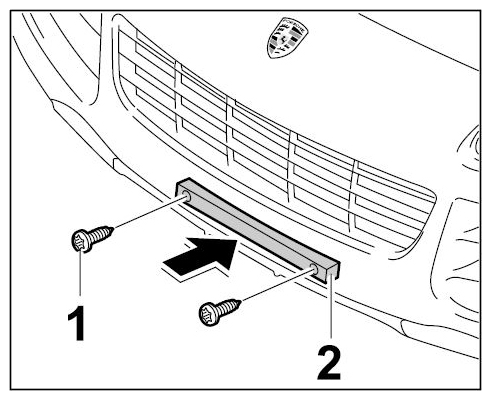

    Fig 2: Installing Front Number Plate Cover
    G09412385Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Screw in self-tapping fastening screws -1-  .
