Subsequent Work

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install heat protection panel
    1. 1.1. Position heat protection panel -3-  on the covering frame in -direction of arrow A-  and push on retaining clip -2-  (-arrow B-  ).
    2. 1.2. Screw in fastening screws -1-  .

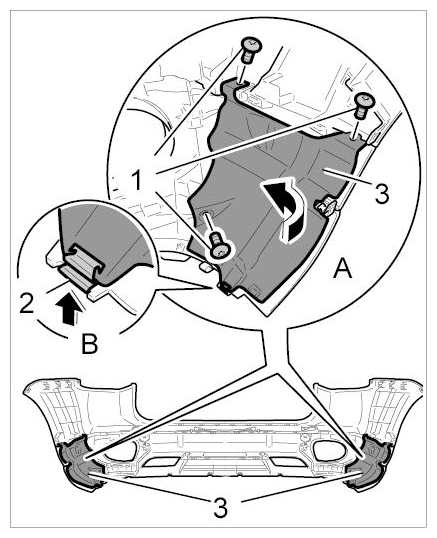

      Fig 1: Pushing Retaining Clip
      G09412370Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Install rear apron. → Installing Rear Apron
