Removing Mud Flaps

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

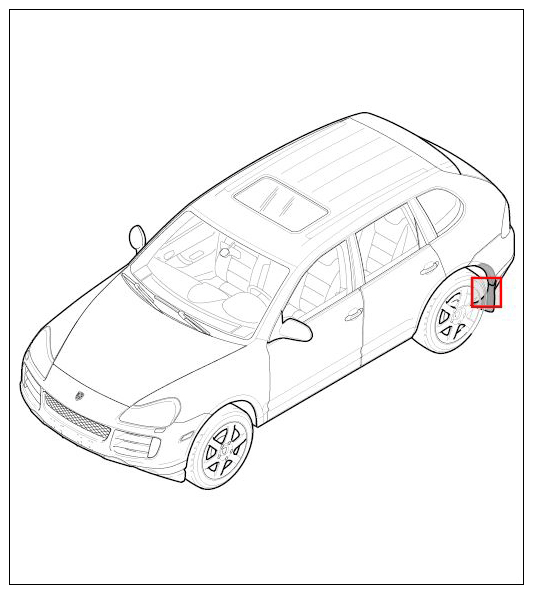

Fig 1: Identifying Mud Flaps

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove mud flap.
1. 1.1. Unscrew fastening screws -1- .
2. 1.2. Remove the mud flap -2- .

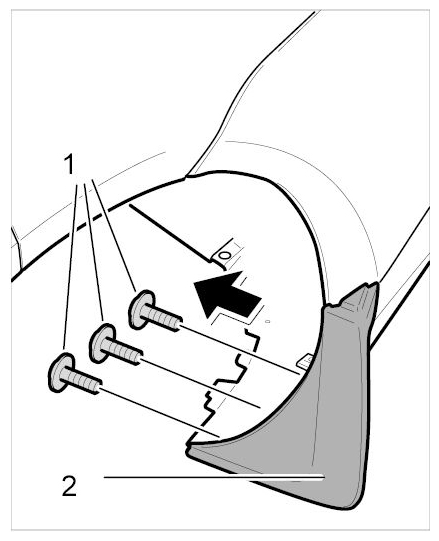

  Fig 2: Removing Mud Flap
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove junction piece.
1. 2.1. Heat up wheel cover (junction piece) -3- with a hot-air gun Nr.155-1 Pos.2 .

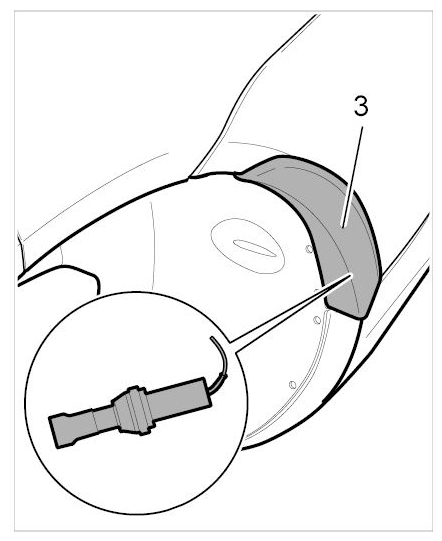

  Fig 3: Heating Junction Piece
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Lever off junction piece -3- from the body evenly all the way round using an assembly wedge.

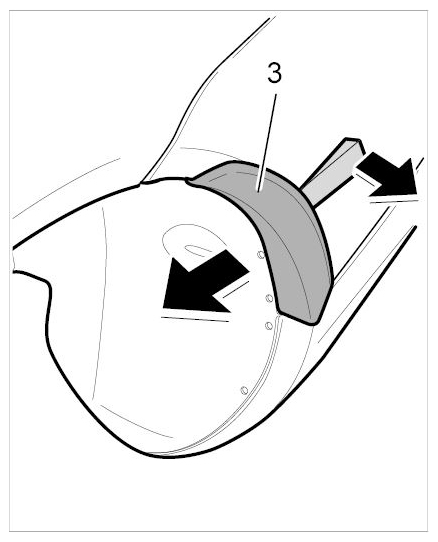

  Fig 4: Levering Off Junction Piece
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove adhesive residue.
1. 3.1. Remove adhesive residue in the assembly area -A- with an erasing disc. Erasing disc Nr.174

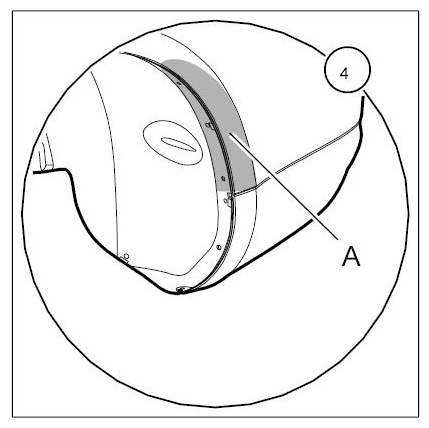

  Fig 5: Identifying Adhesive Residue
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

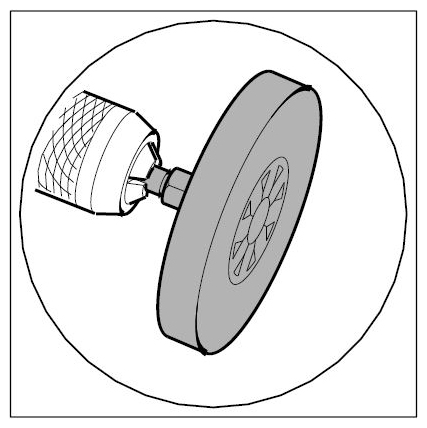

  Fig 6: Identifying Erasing Disc
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
