Preliminary Work

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear apron. → Removing Rear Apron
  2. Removing heat protection panel
    1. 2.1. Unscrew fastening screws -1-  .
    2. 2.2. Release retaining clip -2-  (-arrow A-  ) and remove heat protection panel -3-  in -direction of arrow B-  .

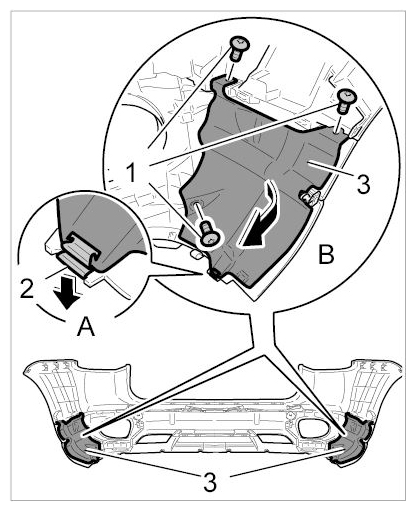

      Fig 1: Removing Heat Protection Panel
      G09412357Courtesy of PORSCHE CARS NORTH AMERICA, INC.
