Removing Mirror Glass

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

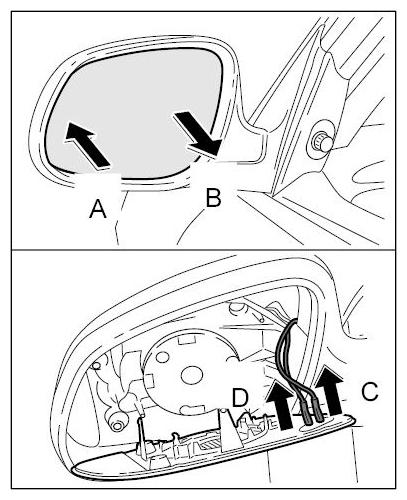

  1. Press glass of mirror on the outside inwards -arrow A-  and pull out on the inside -arrow B-  .
    Fig 1: Pressing Glass Of Mirror
    G09412333Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove negative cable -C-  and positive cable -D-  from the heating foil.
    Fig 2: Removing Negative And Positive Cable
    G09412334Courtesy of PORSCHE CARS NORTH AMERICA, INC.
