Installing Mirror Glass

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Connect negative -A- and positive cable -B- to the heating foil.

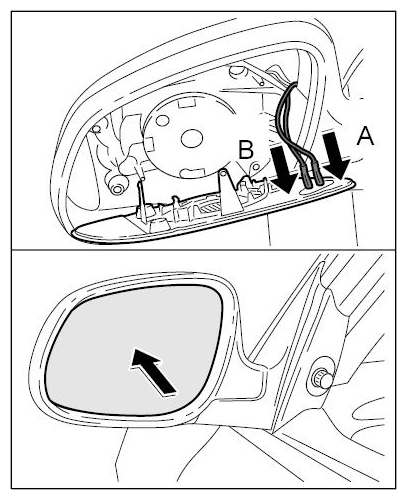

Fig 1: Installing Negative And Positive Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert glass for mirror.
Press centre of glass -arrow- into the mirror until the glass engages firmly in the adjustment mechanism.

Fig 2: Pressing Centre Of Glass
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
