Removing Trim Frame For Side Window

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

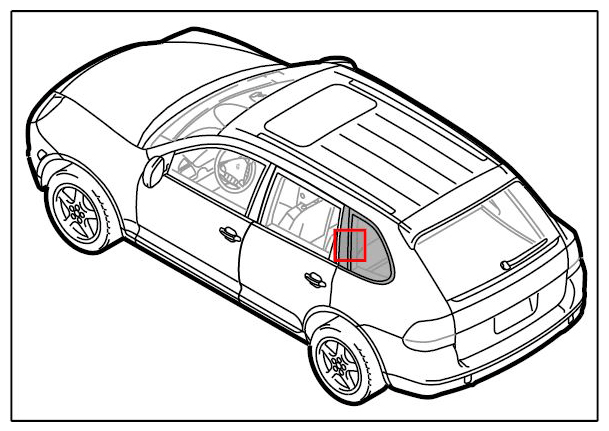

Fig 1: Identifying Trim Frame For Side Window

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Press retaining clips -1, 2- for connecting piece -3- of side window trim strip inwards -Arrow A- or forwards -Arrow B- and lift connecting piece up and off (-Arrow C- ).

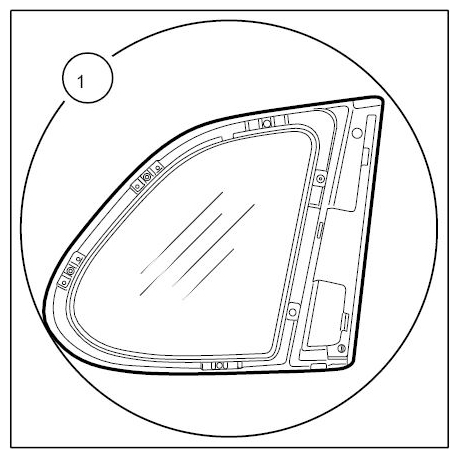

Fig 2: Identifying Trim Strip For Side Window
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

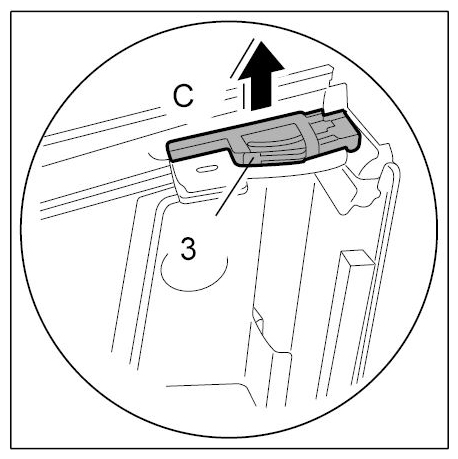

Fig 3: Removing Connecting Piece
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

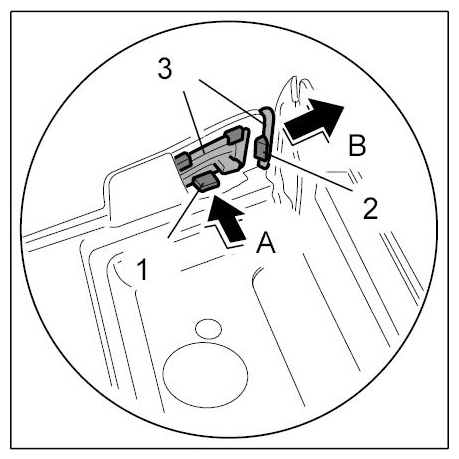

Fig 4: Pressing Retaining Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
To remove trim frame, unscrew fastening screws -4- and lift it off.

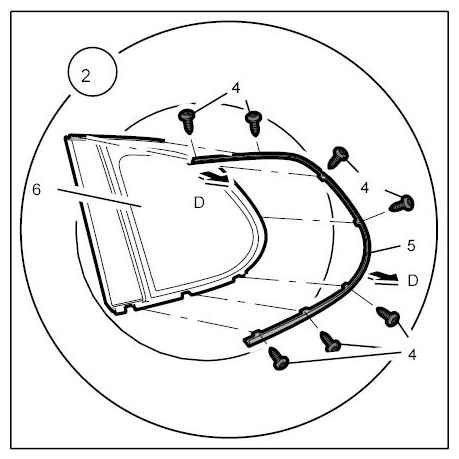

Fig 5: Identifying Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove trim strip for side window -5- outwards -arrow D- from the side window -6- .

Fig 6: Identifying Trim Strip For Side Window
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
