Installing Trim Frame For Side Window

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

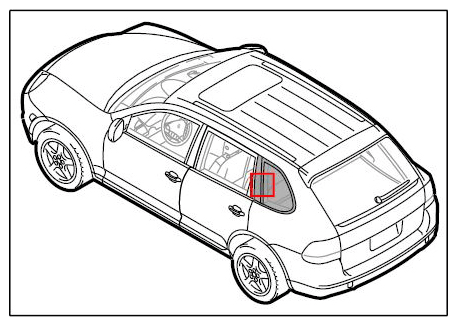

Fig 1: Identifying Trim Frame For Side Window

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

To install trim frame, insert the trim frame -5- in the side window -6- from outside -Arrow A- and position it.

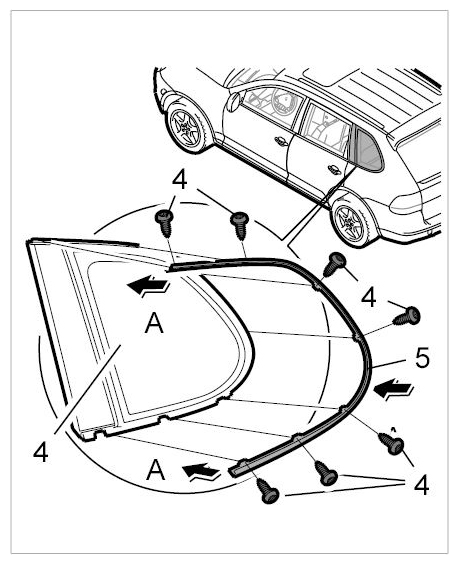

Fig 2: Identifying Trim Frame And Side Window
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in and tighten the fastening screws -4- .

Fig 3: Identifying Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert connecting piece -3- of trim strip for side window from above -Arrow B- and clip in retaining clips -1, 2- .

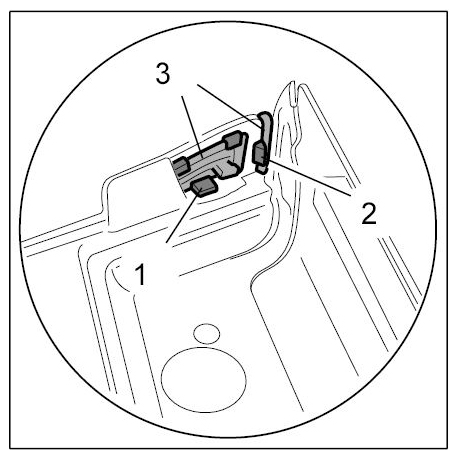

Fig 4: Identifying Retaining Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

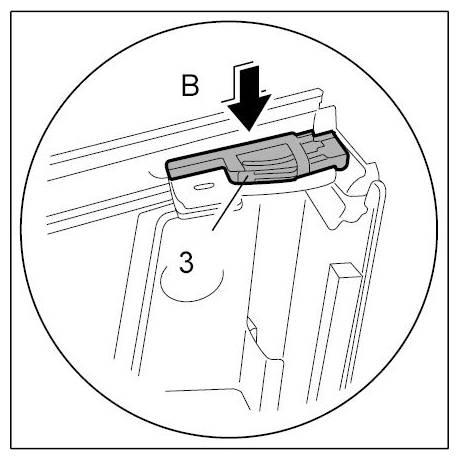

Fig 5: Inserting Connecting Piece
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

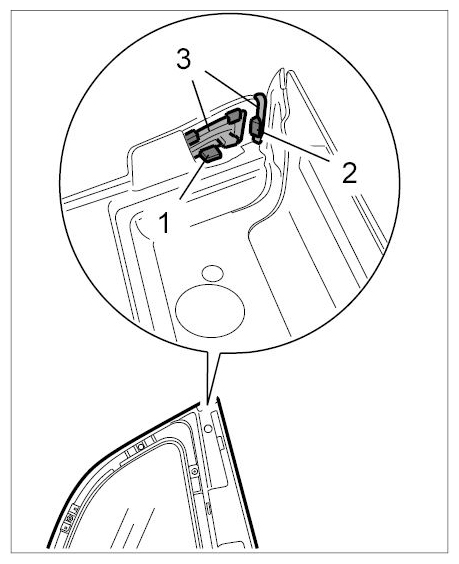

Fig 6: Identifying Retaining Clips And Connecting Piece
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
