Installing Switch For Trailer Hitch

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

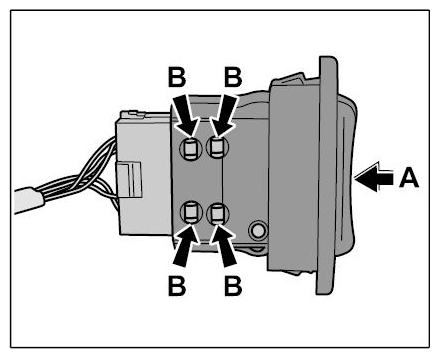

Push switch onto the connector -arrow A- until the locking tabs -arrows B- are felt to engage.

Fig 1: Pushing Switch Onto Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

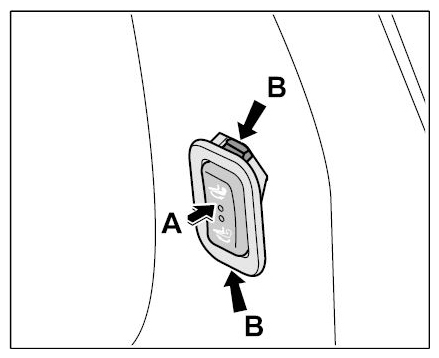

Position the switch parallel to the trim panel and -arrow A- until the locking tabs -arrows B- are felt to engage.

Fig 2: Installing Locking Tabs And Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
