Removing Trim Strip For Windscreen

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

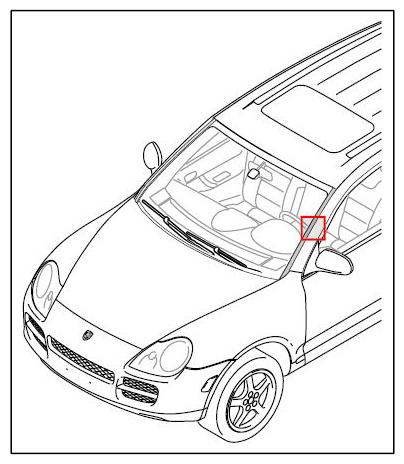

Fig 1: Identifying Trim Strip For Windscreen

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove side cover
1. 1.1. Unclip side cover -1- from the sheetmetal clip -2- .

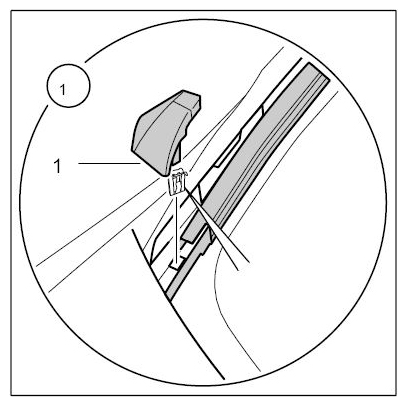

  Fig 2: Identifying Side Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

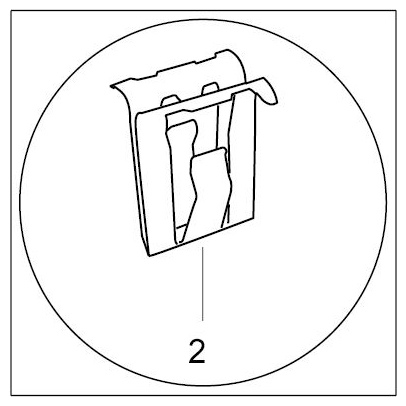

  Fig 3: Identifying Sheetmetal Clip
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip trim strip.
1. 2.1. Starting at the bottom, insert a plastic wedge level the retaining clips -4- between the body and the trim strip -3- .

  Fig 4: Locating Body Of Trim Strip
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

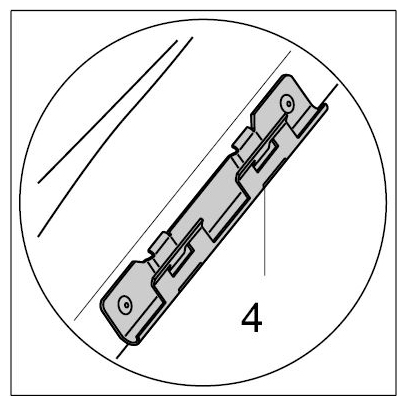

  Fig 5: Identifying Retaining Clips
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

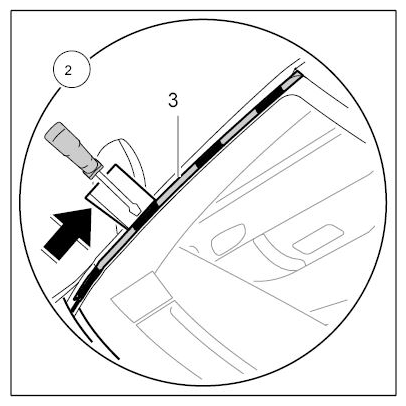

2. 2.2. Insert a screwdriver between the plastic wedge and the trim strip -3- .
3. 2.3. Lever trim strip -3- upwards out of the retaining clips -4- .
