Assembling Rear Spoiler (Aerokit)

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Join additional spoiler -4- to the upper part of the rear spoiler -1- (-arrow A- ) and screw in inner fastening screws -3- .

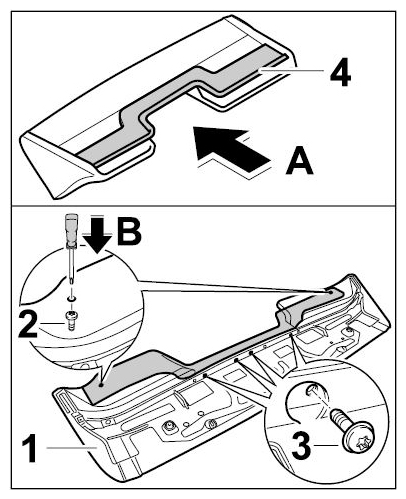

Fig 1: Installing Additional Spoiler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert a Torx screwdriver into the bore on the upper part of the rear spoiler -arrow B- and tighten the outer fastening screws -2- .
