Removing Trim Panel For Rear Lid: Notes

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

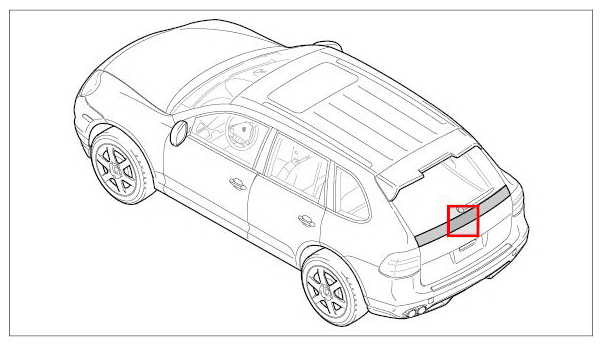

Fig 1: Identifying Installation Position Of Trim Panel For Rear Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Open rear window.
Remove trim panel for rear lid.

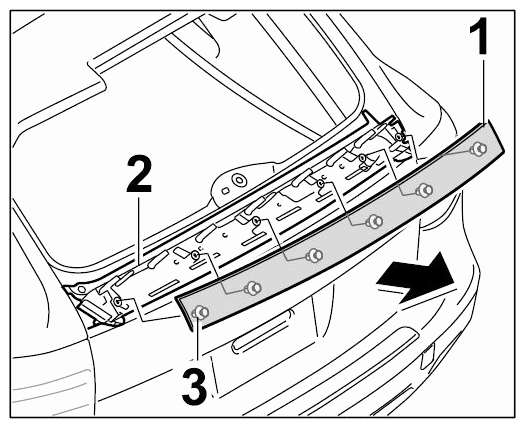

Fig 2: Removing Trim Panel For Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Carefully pull trim panel for rear lid -1- out of the trim panel support -2- (-arrow- ). If necessary insert a plastic wedge between the support and trim panel -1- and unclip trim panel for rear lid by pressing upwards.
2. 2.2. Check fixing clips -3- and replace them if necessary.
Remove and disassemble trim panel support.

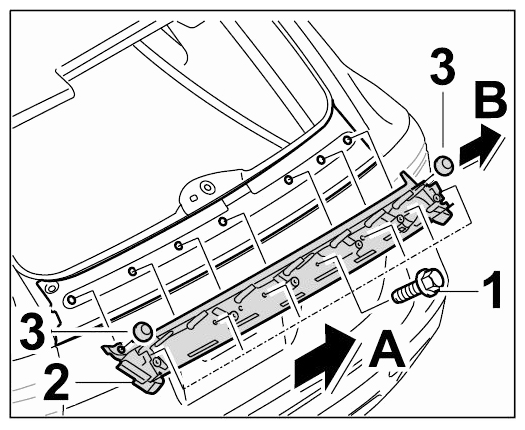

Fig 3: Removing Trim Panel Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Unscrew fastening screws -1- and carefully pull out trim panel support -2- under the rear window seal -arrow A- .
2. 3.2. Press rubber sleeves -3- at the left and right out of the trim panel support -2- (-arrow B- ).
