Installing Trim Panel For Rear Lid: Notes

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

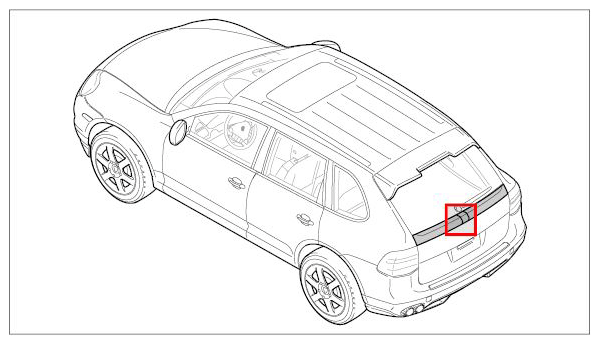

Fig 1: Identifying Installation Position Of Trim Panel For Rear Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Assemble and install trim panel support.

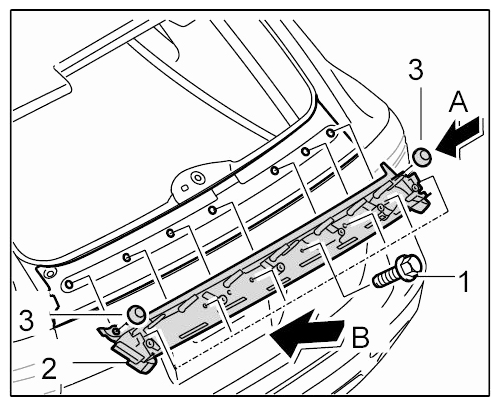

Fig 2: Installing Trim Panel Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Press rubber sleeves -3- at the left and right into the trim panel support -2- (-arrow A- ).
2. 1.2. Place trim panel support -2- on the positioning bolts on the rear lid -arrow B- .
3. 1.3. Screw in fastening screws -1- and check installation position of the trim panel support -2- .
4. 1.4. Tighten fastening screws -1- . → Tightening torque: 4.5 Nm (3.0 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.)
5. 1.5. Clip wire harness -1- into the retaining clips on the trim panel support -arrows- .

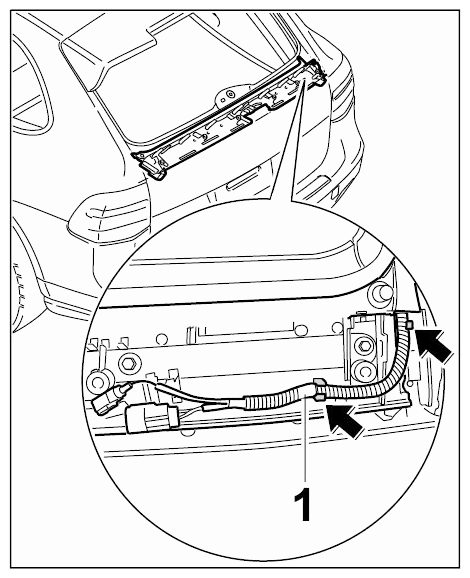

  Fig 3: Clipping Wire Harness For Reversing Camera
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Information
  - Before connecting the plug connection, switch off the ignition and remove the ignition key.
Connect wire harness for reversing camera.
1. 2.1. Press plug connections together until the locking lugs engage securely.
2. 2.2. Clip wire harness into the retaining clips on the trim panel support.

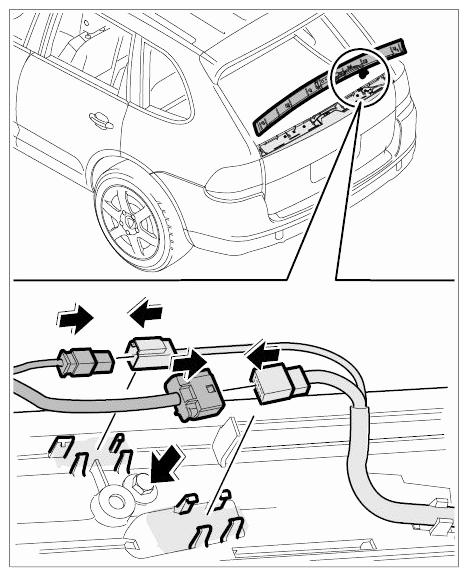

  Fig 4: Connecting Wire Harness
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install trim panel for rear lid.

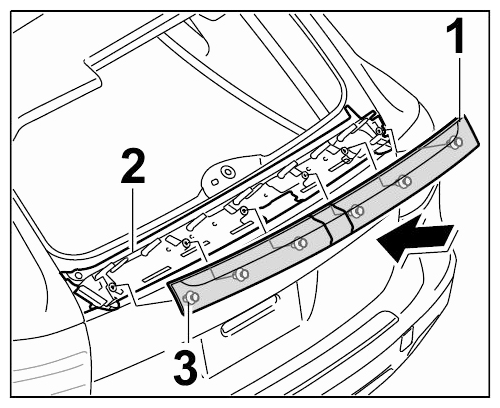

Fig 5: Installing Trim Panel For Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Position trim panel for rear lid -1- on the trim panel support -2- (-arrow- ) and press it on until the fixing clips -3- engage securely.
Close rear window.
