Removing Moulding For Rear Lid

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

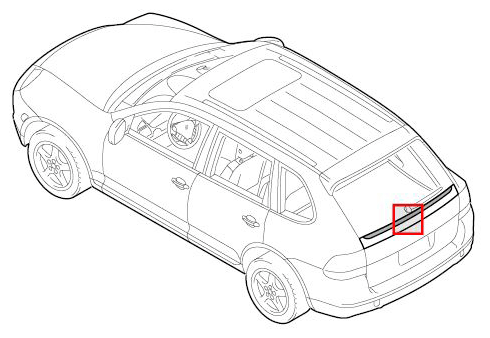

Fig 1: Identifying Moulding For Rear Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove lining for rear lid. → Removing Trim Panel For Rear Lid

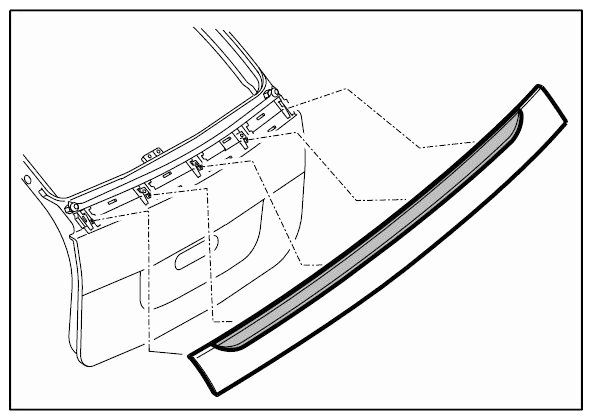

Fig 2: Identifying Lining For Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove moulding for rear lid.
1. 2.1. Heat up moulding -1- with a hot-air gun.
2. 2.2. Remove moulding -1- from lining for rear lid -2- (-Arrow A- )

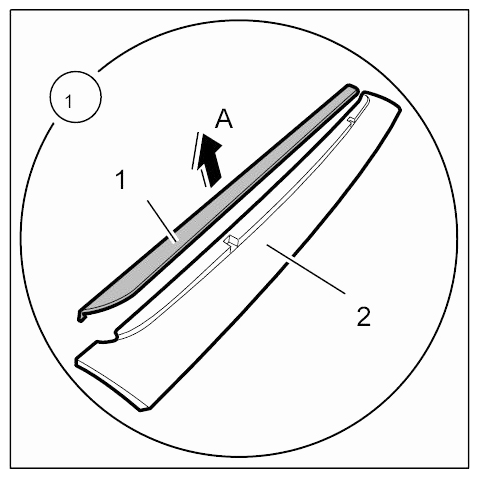

  Fig 3: Removing Moulding
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove adhesive strips from lining for rear lid
1. 3.1. Remove adhesive strips -3- from lining for rear lid.
2. 3.2. Remove any adhesive residue from lining for rear lid.

  Fig 4: Identifying Adhesive Strips For Moulding
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
